Takisawa · CNC Lathes & Multi-Tasking

CNC turning, multi-tasking and machining centres

Takisawa CNC machine tools span single- and twin-spindle turning, Y-axis and opposed-spindle combined machining, B-axis multi-tasking, non-circular piston machining and vertical machining centres. Kiseki Machinery supplies and supports the Takisawa range across India.

CNC LatheMulti-Tasking MachineNon-Circular Machining CNC LatheMachining CenterCNC / Manual Lathe (CNC-capable hybrid)
Takisawa machine

CNC Lathe

Single- and twin-spindle CNC turning centres, from compact 6-inch machines to large heavy-duty lathes.

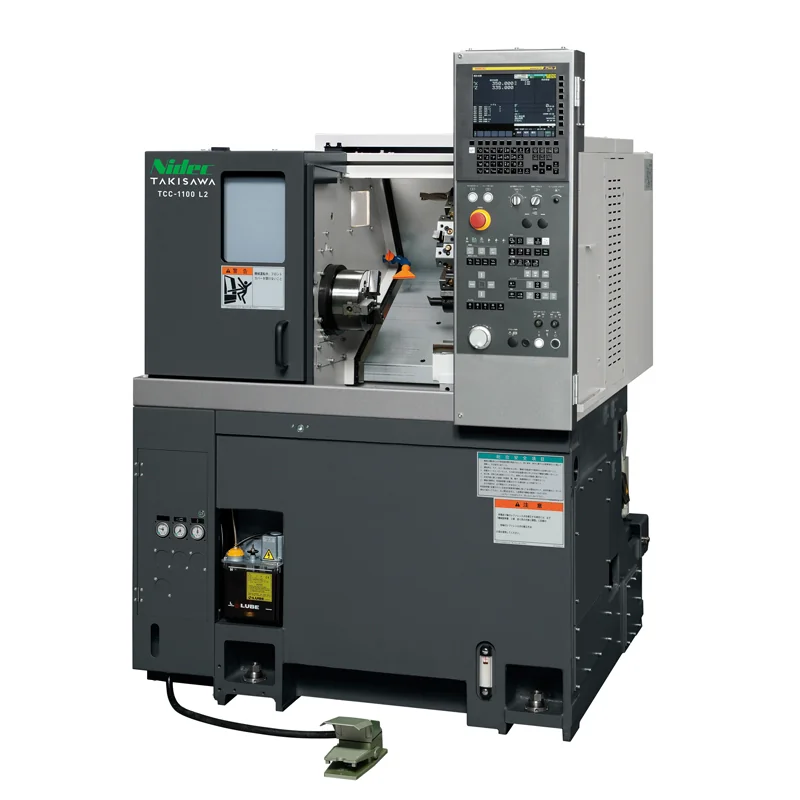

TCC-1100

TCC-Series CNC Lathe (1 Spindle / 1 Turret)

TCC-1100

High productivity and High quality can be ensured at LOW COST!

Key specifications
Chuck Size
inch / 6
Type of Turret
8-Station Turret (Direct-Mount Type) / 12-Station Turret (Direct-Mount Type)
Max. Turning Diameter
mm / φ220 / φ170
Max. Turning Length
mm / 171
Bar Capacity * 1
mm / φ42
Spindle Speed
min -1 / 4000 [OP. 5000, 6000]
Rapid Traverse Rate
m/min / X : 24 / Z : 30
Spindle Motor（15,30 min/continuous）
kW / 5.5/3.7 [OP. 7.5/5.5]
Machine Height
mm / 1700
Features
  • The rapid traverse rate is increased compared to our former machines to reduce machining time.
  • Tank bed structure with a large capacity coolant tank.
  • Improved machining accuracy thanks to minimized thermal distortion.
  • All slideways use highly rigid and highly accurate rectangular slides.
Request price & details →

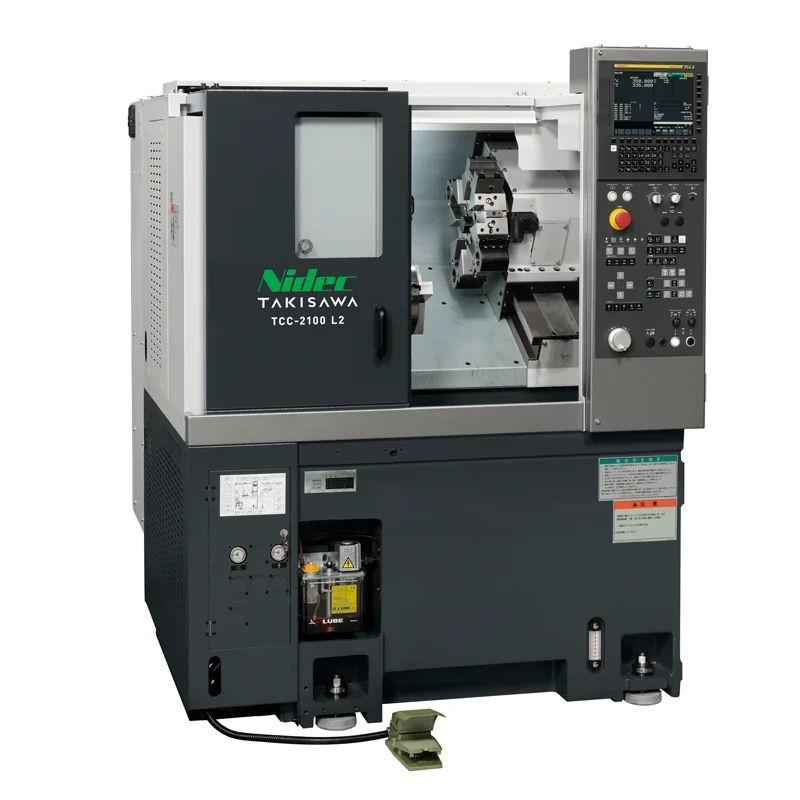

TCC-2100

TCC-Series CNC Lathe (1 Spindle / 1 Turret)

TCC-2100

Maximum Return from Small Investment

Key specifications
Chuck Size
inch / 8
Type of Turret
8-Station Turret （Direct-Mount Type） / 12-Station Turret （Direct-Mount Type）
Max. Turning Diameter
mm / φ350 / φ320
Max. Turning Length * 1
mm / 189 / 191 / 289 / 291
Bar Capacity * 2
mm / φ51 《φ42》
Spindle Speed
min -1 / 3200 [OP. 2500, 4100 《5000, 6000》]
Rapid Traverse Rate
m/min / X : 24 / Z : 30
Spindle Motor （15,30 min/continuous）
kW / 11/7.5
Machine Height
mm / 1700
Features
  • The rapid traverse rate is increased compared to our former machines to reduce machining time.
  • Tank bed structure with a large capacity coolant tank.
  • Improved machining accuracy thanks to minimized thermal distortion.
  • All slideways use highly rigid and highly accurate rectangular slides.
Request price & details →
TCN-2100V.EDITION

TCN-Series CNC Lathe (1 Spindle / 1 Turret)

TCN-2100V.EDITION

While keeping the high performance dedicated for turning, V.EDITION has minimum required functions, providing excellent cost performance.

Key specifications
Chuck Size
inch / 8
Type of Turret
8-Station Turret （Direct-Mount Type） / 12-Station Turret （Direct-Mount Type）
Max. Turning Diameter
mm / φ410 / φ340 / φ410 * 2 / φ340 * 2
Max. Turning Length
mm / 300 / 600
Bar Capacity * 1
mm / φ51
Spindle Speed
min -1 / 3200
Rapid Traverse Rate
m/min / X : 24 / Z : 30
Spindle Motor （15 min/continuous）
kW / 11/7.5
Machine Height
mm / 1700
Features
  • All slideways use highly rigid and highly accurate rectangular slides.
  • Continuous rated torque is improved compared to former machines by reviewing the spindle motor and reduction ratio.
  • Two types of 8-(Standard) and 12-(Option) station turret are available.
  • Supporting highly rigid hydraulic tailstock (Optional)
Request price & details →

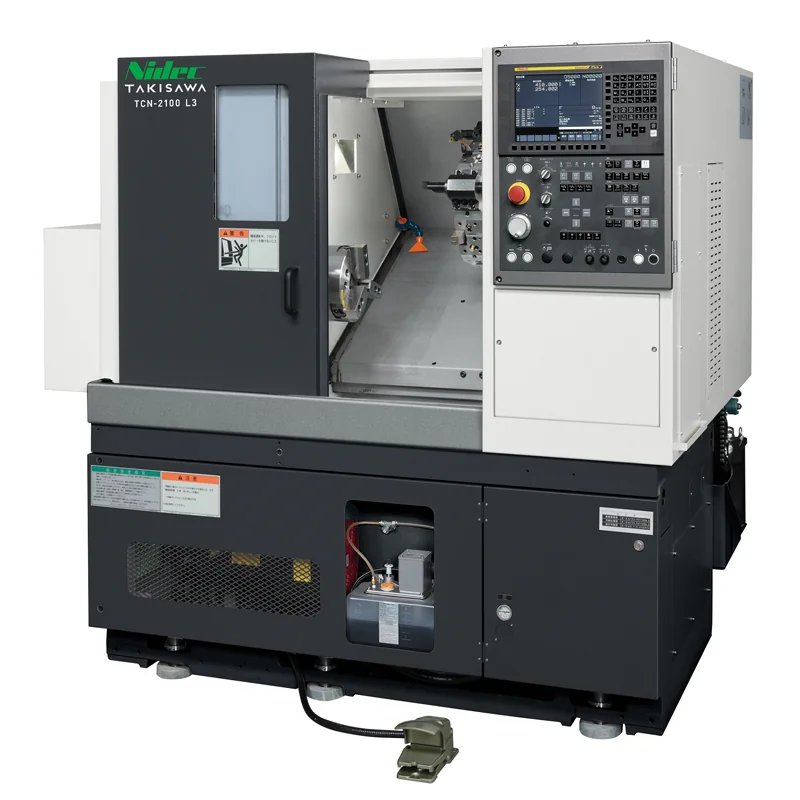

TCN-2100

TCN-Series CNC Lathe (1 Spindle / 1 Turret)

TCN-2100

New model of 8" TCN chosen around the world for its high cutting capability and versatility!

Key specifications
TCN-2100 L3
TCN-2100 L6
Chuck Size
inch / 8
Type of Turret
8-Station Turret （Direct-Mount Type） / 12-Station Turret （Direct-Mount Type）
Max. Turning Diameter
mm / φ410 / φ340 / φ410 * 2 / φ340 * 2
Max. Turning Length
mm / 300 / 600
Bar Capacity * 1
mm / φ51
Spindle Speed
min -1 / 3200 [OP. 5000]
Rotary Tool Speed
min -1 / -
Rapid Traverse Rate
m/min / X : 24 / Z : 30
Features
  • All slideways use highly rigid and highly accurate rectangular slides.
  • Continuous rated torque is improved compared to former machines by reviewing the spindle motor and reduction ratio.
  • Three types of 8-(Standard), 12-(Option) and milling 12-(Option) station turret are available.
  • Supporting highly rigid hydraulic tailstock (Optional)
Request price & details →

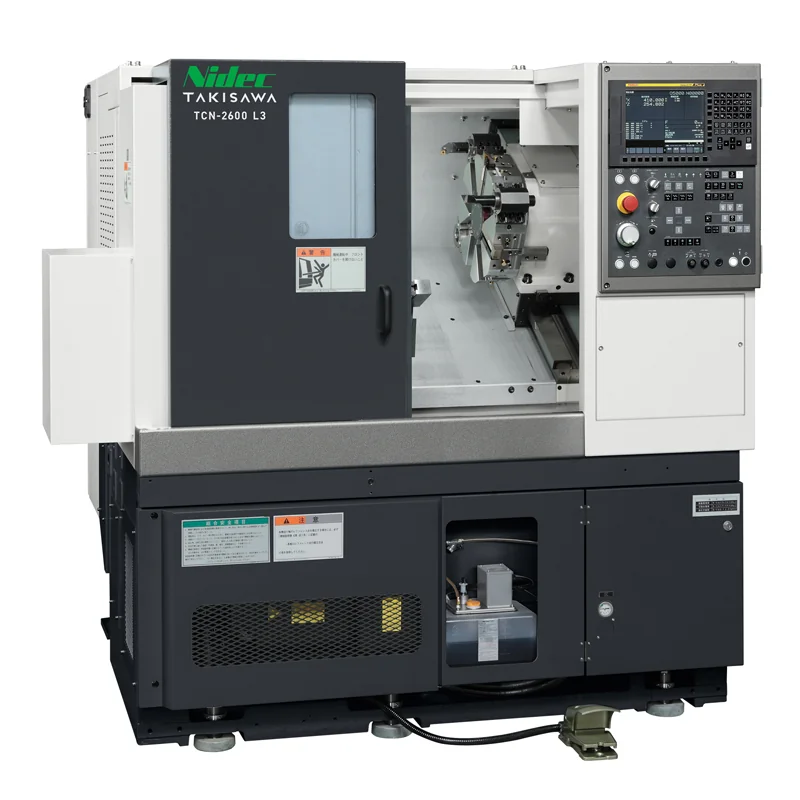

TCN-2600

TCN-Series CNC Lathe (1 Spindle / 1 Turret)

TCN-2600

New model of 10" TCN chosen around the world for its high cutting capability and versatility!

Key specifications
TCN-2600 L3
TCN-2600 L6 / TCN-2600CM L3 / TCN-2600CM L6
Chuck Size
inch / 10
Type of Turret
8-Station Turret （Direct-Mount Type） / Rotary Tool Type 12-Station Turret
Max. Turning Diameter
mm / φ410 / φ410 * 2 / φ280
Max. Turning Length
mm / 250 / 550 / 158 / 458
Bar Capacity * 1
mm / φ74 [OP. φ90]
Spindle Speed
min -1 / 3200 [OP. 2500]
Rotary Tool Speed
min -1 / - / 6000
Rapid Traverse Rate
m/min / X : 24 / Z : 30
Features
  • All slideways use highly rigid and highly accurate rectangular slides.
  • Continuous rated torque is improved compared to former machines by reviewing the spindle motor and reduction ratio.
  • Two types of 8-(Standard) and 12-station milling turret are available.
  • Supporting highly rigid hydraulic tailstock (Optional)
Request price & details →

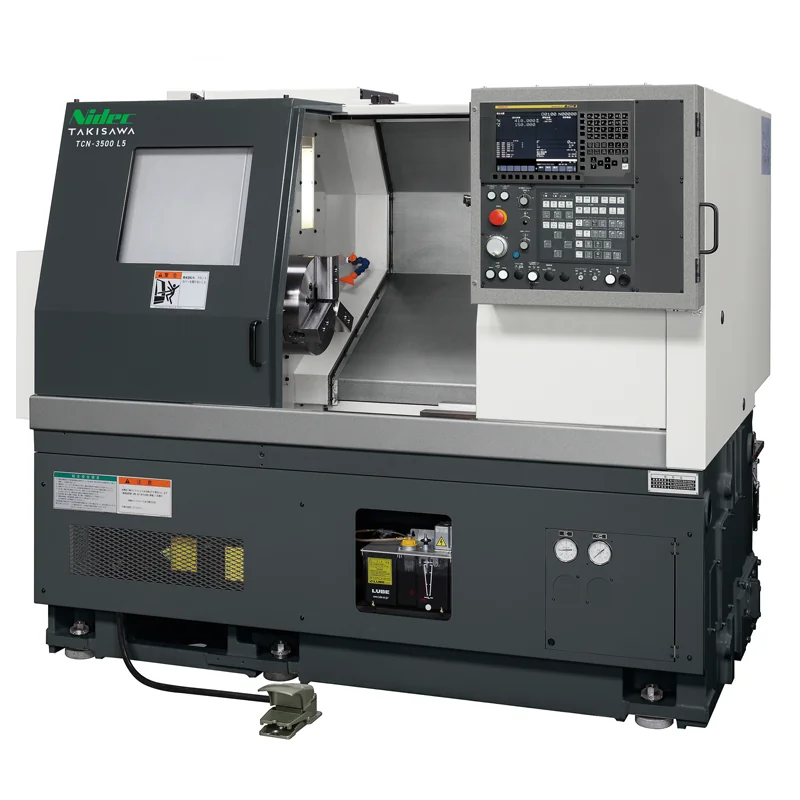

TCN-3500

TCN-Series CNC Lathe (1 Spindle / 1 Turret)

TCN-3500

Corresponding to various production demands with our rich experiences in automation

Key specifications
Chuck Size
inch / 12, 10
Type of Turret
8-Station Turret （Direct-Mount Type） / 10-Station Turret （Direct-Mount Type） / 12-Station Turret （Direct-Mount Type）
Max. Turning Diameter
mm / φ430 / φ460
Max. Turning Length
mm / 485 / 510
Bar Capacity * 1
mm / φ80 [OP. φ108]
Spindle Speed
min -1 / 2500 [OP. 3000]
Rotary Tool Speed
min -1 / -
Rapid Traverse Rate
m/min / X : 16 / Z : 24
Spindle Motor （30 min/continuous）
kW / 15/11
Features
  • Standard machine with compact space having optimum balance of machine structure
  • All slideways use highly rigid and highly accurate rectangular slides.
  • Four types of 8-(Standard), 10-(Option), 12-(Option) and milling 12-(Option) station turret are available.
  • ENERGY SAVING
Request price & details →

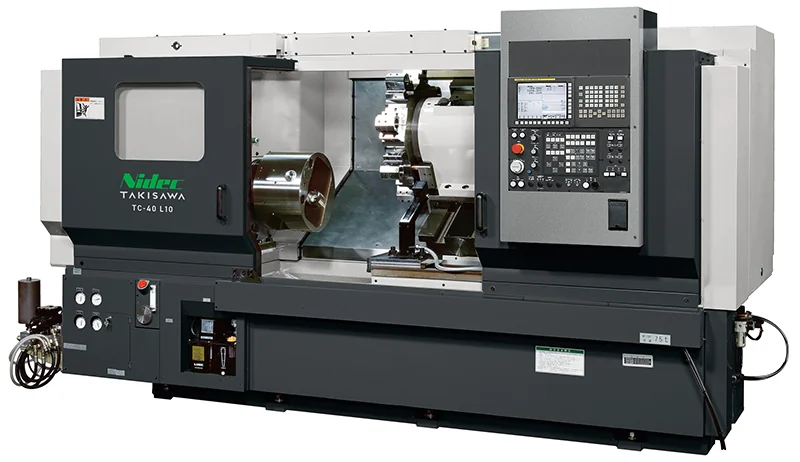

TC-40

TC-Series Highly Rigid CNC Lathe (1 Spindle / 1 Turret)

TC-40

*1) Please note the bar capacity follows types of chucks and cylinders.

Key specifications
Chuck Size
inch / 12
Type of Turret
8-Station Turret (Direct-Mount Type) / 10-Station Turret (Direct-Mount Type) / 12-Station Turret (Direct-Mount Type)
Max. Turning Diameter
mm / φ450 / φ420
Max. Turning Length
mm / 1020
Bar Capacity * 1
mm / φ89
Spindle Speed
min -1 / 2500
Rapid Traverse Rate
m/min / X : 12 / Z : 16
Spindle Motor （30 min/continuous）
kW / 18.5/15 [OP. 22/18.5, 26/22]
Machine Height
mm / 1920
Features
  • 12"/15" Chuck Type CNC Lathe
  • Tough turret, tailstock, bed and saddle construction presents powerful and stable cutting.
  • Highly Rigid Turret
  • Highly Rigid Tailstock
Request price & details →

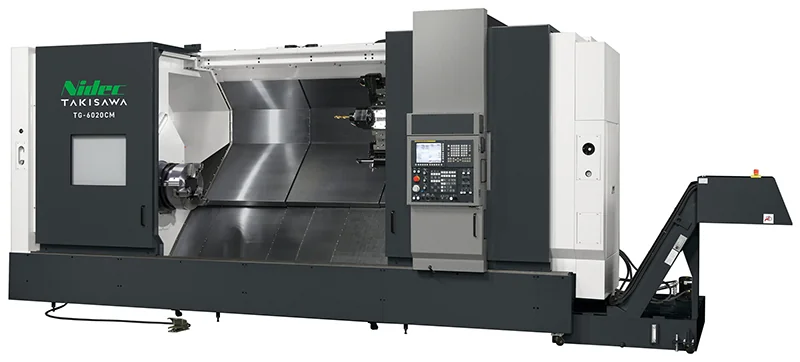

TG-6000

TG-Series Highly Rigid Large CNC Lath

TG-6000

Photo is TG-6020 including options.

Key specifications
Type of Turret
8-Station Turret (Direct-Mount Type) / 10-Station Turret (Direct-Mount Type) / 12-Station Turret (Direct-Mount Type)
Max. Turning Diameter
mm / φ760 / φ730
Max. Turning Length
mm / 1031
Spindle Speed
min -1 / 1200 [OP. 2000](A), 1000(B), 750(C), 500(D)
Spindle Through-Hole Diameter
mm / 131(A), 185(B), 275(C), 375(D)
Rapid Traverse Rate
m/min / X : 12 / Z : 16
Spindle Motor （30 min/continuous）
kW / 37/30 [OP. 45/37]
Machine Height
mm / 2700
Required Floor Space * 1
mm / 5848×2360(A, B), 5848×2465(C, D)
Features
  • Most Powerful Turning Capability In This Class Of Machine
  • Applicable to Large Diameter and Long Workpieces
  • Big bore specification for both-end machining of large-diameter pipe
  • 15"～28" Chuck
Request price & details →

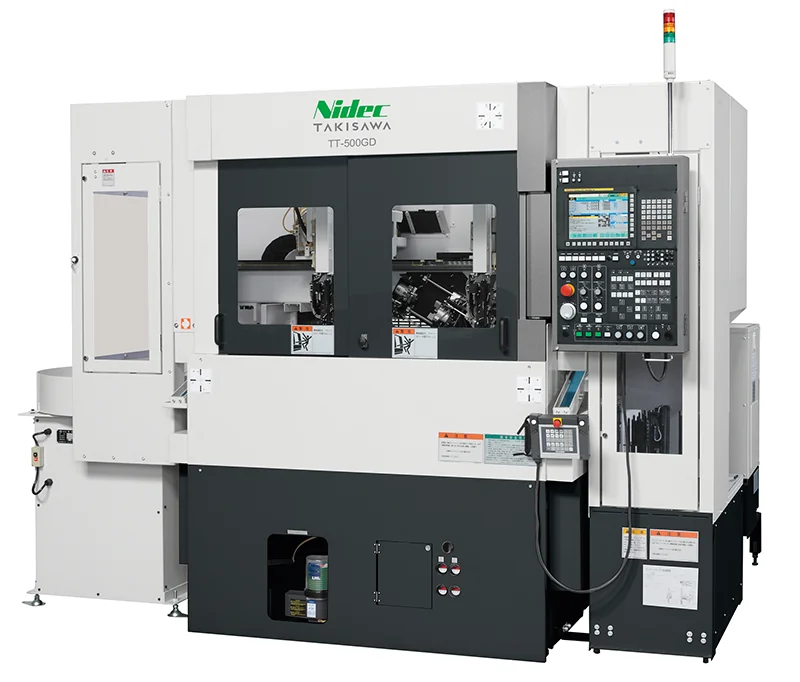

TT-500GD

TT-Series Parallel Twin-Spindle CNC Lathe

TT-500GD

Flexibly Supporting Any Type of Production

Key specifications
Chuck Size
inch / 5+5
Type of Turret
Comb Type Tool Slide
Number of Attachable Tools, Tool Slide Width
mm / 5 Tools, 330
Max. Turning Diameter
mm / φ50
Max. Turning Length
mm / 50
Spindle Speed
min -1 / 5000 [OP. 8000]
Rapid Traverse Rate
m/min / X : 20 / Z : 24
Spindle Motor（15 min/continuous）
kW / 7.5/3.7
Machine Height
mm / 2145
Features
  • Twin gantry optimum for workpieces with short machining tact time is equipped as standard.
  • The high power 7.5 kW built-in motor accelerates/decelerates the spindle at a high speed. It takes only 0.8 seconds to reach 5000min -1 .
  • The comb type turret is the flat type easy for centering. Even for 50 mm workpieces, five tools can be attached.
  • Achieving both high rigidity and high accuracy by integrated bed and vibration-dispersing slit structure
Request price & details →

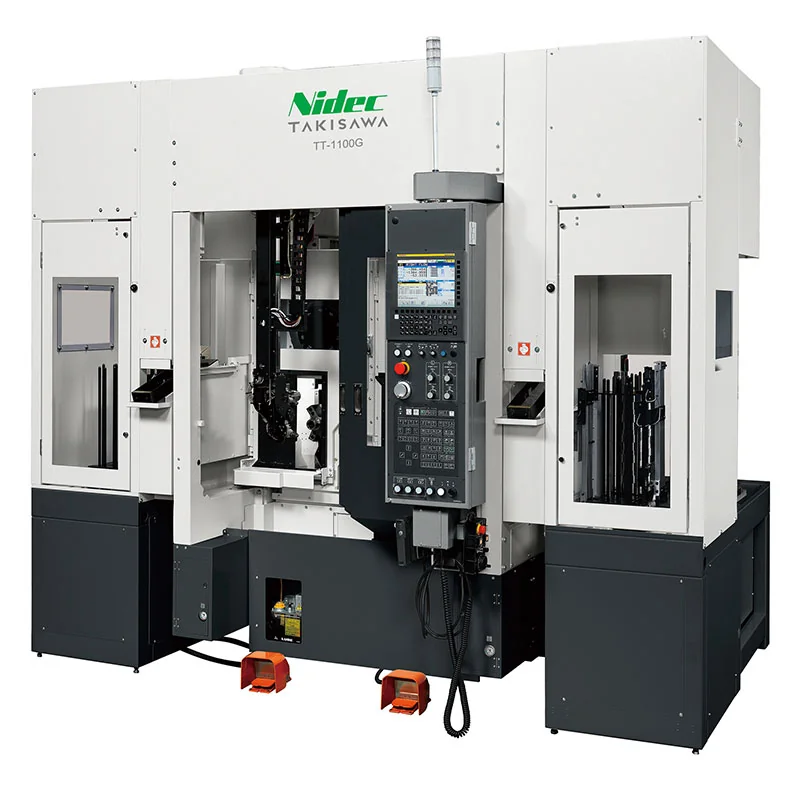

TT-1100G

TT-Series Parallel Twin-Spindle CNC Lathe

TT-1100G

Ultrafast Loading by New System!

Key specifications
Chuck Size
inch / 6+6
Type of Turret
10-Station Turret（All-Holder Type）
Max. Turning Diameter
mm / φ140
Max. Turning Length
mm / 121
Spindle Speed
min -1 / 4500 [OP. 6500]
Rapid Traverse Rate
m/min / X : 24 / Z : 30
Spindle Motor (15 min/continuous)
kW / 5.5/3.7 [OP. 7.5/5.5]
Machine Height
mm / 2450
Required Floor Space
mm / 2258×3327
Features
  • The bed has a tank bed structure which can keep thermal displacement to the minimum all day.
  • X- and Z-axis roller guides are mounted on the same column. X-axis is arranged vertically to reduce machine width.
  • The right and left turrets are the same 10-station all-holder type with the powerful bolt clamping system.
  • ENERGY SAVING SYSTEM / Environment Friendly Reduction of power consumption. Use of oil-water separator extends the coolant life.
Request price & details →

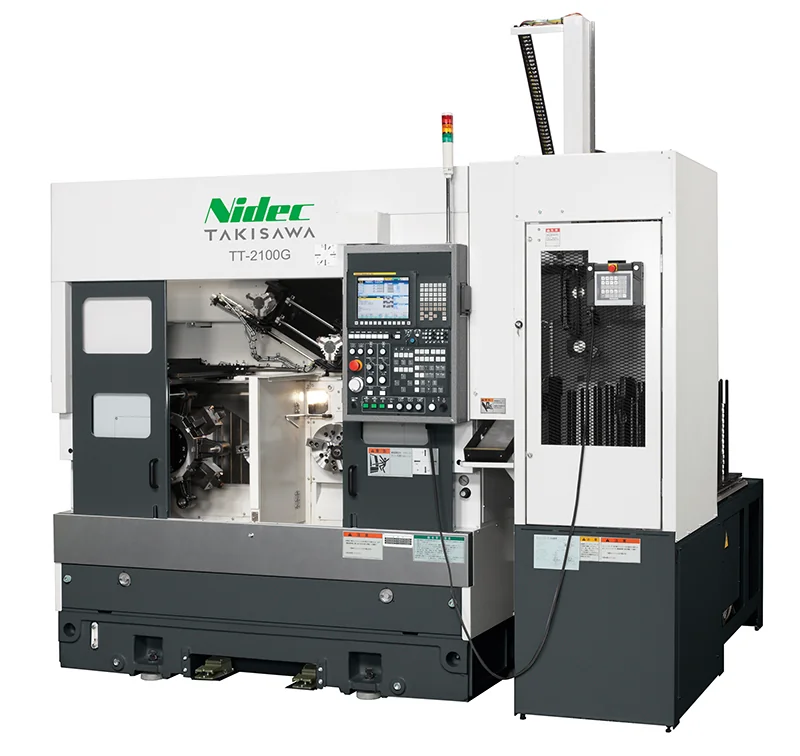

TT-2100G

TT-Series Parallel Twin-Spindle CNC Lathe

TT-2100G

Corresponding to high-accuracy/mass-production parts of automobile industry!

Key specifications
Chuck Size
inch / 6+6 / 8+8
Type of Turret
10-Station Turret （All-Holder Type） / 12-Station Turret （All-Holder Type）
Max. Turning Diameter
mm / φ240
Max. Turning Length
mm / 135.5 / 94
Spindle Speed
min -1 / 4500 [OP. 6000] / 3200 [OP. 4500]
Rotary Tool Speed
min -1 / -
Rapid Traverse Rate
m/min / X : 24 / Z : 24
Spindle Motor （15 min/continuous）
kW / 7.5/5.5 [OP. 11/7.5] / 11/7.5
Rotary Tool Motor （15 min/continuous）
kW / -
Features
  • The bed has a tank bed structure which can keep thermal displacement to the minimum all day.
  • Wide rectangular slideways are used in the X-/Z-axes sliding surfaces to realize stable machining with high accuracy over a long period of time.
  • There are two types of specifications for high accuracy spindle on the headstock: "6" chuck specification" and "8" chuck specification", which are combined with FANUC's high performance spindle motors to provide excellent performance.
  • 10-station turret (T10) is equipped as standard, and 12-station turret (T12) for multiple processes and 10-station milling turret (T10M) for milling processes are optionally available.
Request price & details →

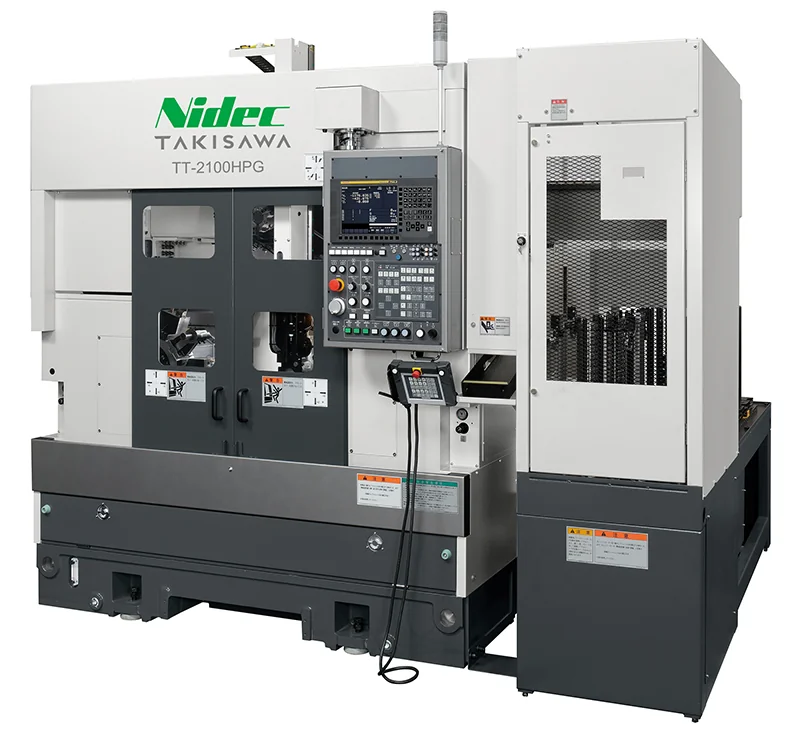

TT-2100HG/TT-2100HPG

TT-Series Parallel Twin-Spindle CNC Lathe

TT-2100HG/TT-2100HPG

New Spec for Best-seller Parallel Twin-spindle TT-2100G

Key specifications
Chuck Size
inch / 6+6 / 8+8
Type of Turret
10-Station Turret （All-Holder Type） / 12-Station Turret （All-Holder Type）
Max. Turning Diameter
mm / φ240
Max. Turning Length
mm / 135.5 / 94
Spindle Speed
min -1 / 4500 [OP. 6000] / 3200 [OP. 4500]
Rotary Tool Speed
min -1 / -
Rapid Traverse Rate
m/min / X : 30 / Z : 30
Spindle Motor （15 min/continuous）
kW / 7.5/5.5 [OP. 11/7.5] / 11/7.5
Rotary Tool Motor （15 min/continuous）
kW / -
Features
  • Talk About "TT-2100HP"
  • The bed has a tank bed structure which can keep thermal displacement to the minimum all day.
  • There are two types of specifications for high accuracy spindle on the headstock: "6" chuck specification" and "8" chuck specification", which are combined with FANUC's high performance spindle motors to provide excellent performance.
  • 10-station turret (T10) is equipped as standard, and 12-station turret (T12) for multiple processes and 10-station milling turret (T10M) for milling processes are optionally available.
Request price & details →

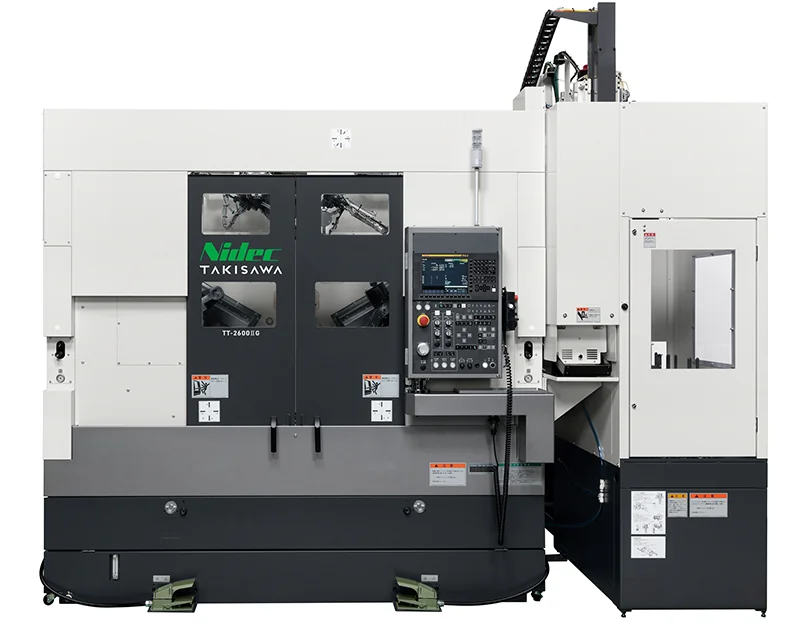

TT-2600ⅡG/TT-2600ⅡWG

TT-Series Parallel Twin-Spindle CNC Lathe

TT-2600ⅡG/TT-2600ⅡWG

Corresponding to high-accuracy/mass-production parts of automobile industry!

Key specifications
TT-2600ⅡG
TT-2600ⅡWG
Chuck Size
inch / 8+8 / 10+10 / 12+12
Type of Turret
12-Station Turret （All-Holder Type）
Max. Turning Diameter
mm / φ290 / φ340
Max. Turning Length
mm / 214 / 204 / 184 [OP. 166]
Spindle Speed
min -1 / 4000 / 3200 [OP. 2500] / 2500
Rotary Tool Speed
min -1 / -
Rapid Traverse Rate
m/min / X : 24 / Z : 24
Spindle Motor
kW / 11/7.5 [OP. 15/11] （15 min/continuous） / 15/11 （15 min/continuous） [OP. 18.5/15（30 min/continuous）] / 15/11 （15 min/continuous）
Features
  • The bed has a tank bed structure which can keep thermal displacement to the minimum all day.
  • Wide rectangular slideways are used in the X-/Z-axes sliding surfaces to realize stable machining with high accuracy over a long period of time.
  • There are three types of specifications for high accuracy spindle on the headstock: "8" chuck specification", "10" chuck specification" and "12" chuck specification", which are combined with FANUC's high performance spindle motors to provide excellent performance.
  • 12-station turret (T12) is equipped as standard, and 12-station milling turret (T12M) for milling processes are optionally available.
Request price & details →

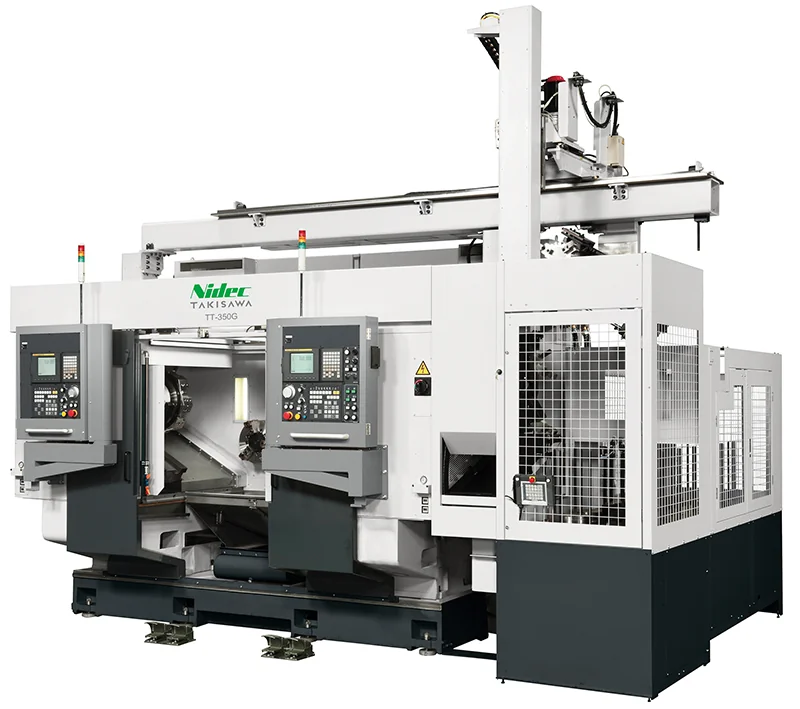

TT-350G

TT-Series Parallel Twin-Spindle CNC Lathe

TT-350G

Corresponding to medium or large sized workpieces for automobile and construction machine industries

Key specifications
TT-350G
TT-350CMG
Chuck Size
inch / 12+12 / 10+10
Type of Turret
8-Station Turret （Direct-Mount Type） / 10-Station Turret （Direct-Mount Type） / 12-Station Turret （Direct-Mount Type） / Rotary Tool Type 12-Station Turret
Max. Turning Diameter
mm / φ460
Max. Turning Length
mm / 325 / 326 / 281
Spindle Speed
min -1 / 3000 [OP. 2000, 4000]
Rotary Tool Speed
min -1 / - / 3600
Rapid Traverse Rate
m/min / X : 24 / Z : 24
Spindle Motor （30 min/continuous）
kW / 18.5/15 [OP. 22/18.5]
Features
  • Incomparably close accessibility
  • Loader specification is available for heavy workpieces.
  • X/Z-axis slideway and turret use the same highly rigid and highly reliable structures as universal 2-axis lathes.
  • Wide rectangular slideways are used in the X-/Z-axes sliding surfaces to realize stable machining with high accuracy over a long period of time.
Request price & details →

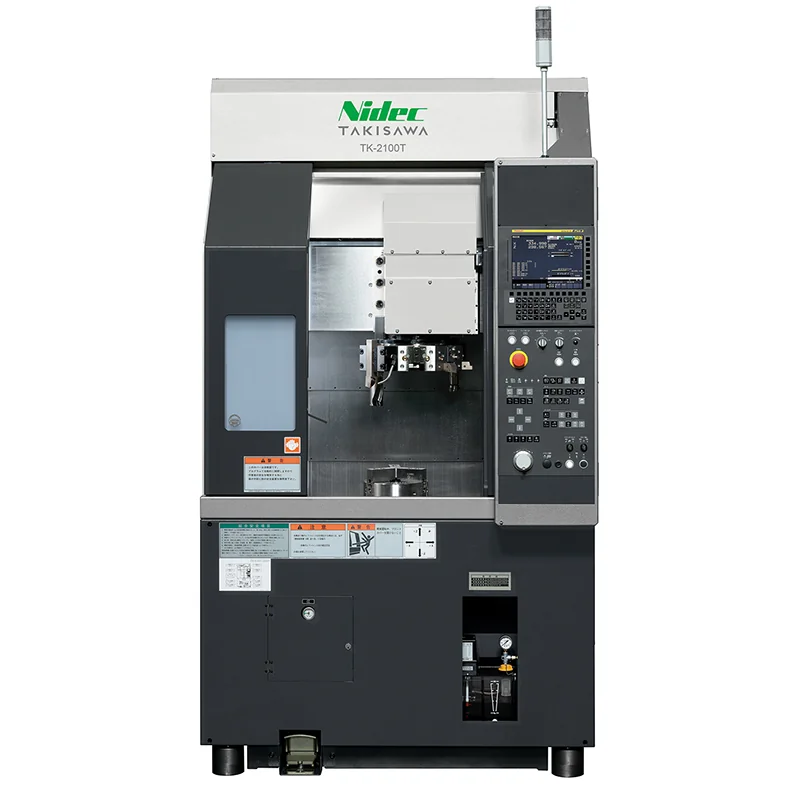

TK-2100

TK-Series Vertical CNC Lathe (1 Spindle / 1 Turret or Comb)

TK-2100

Fully redesigned 30-year long selling models.Definitive model of compact vertical lathe.

Key specifications
Chuck Size
inch / 8
Type of Turret
Comb Type Tool Slide / 6-Station Turret （Direct-Mount Type） / 8-Station Turret （Direct-Mount Type）
Max. Swing
mm / 400 《600》
Max. Turning Diameter
mm / - / φ355 / φ335
Max. Turning Length
mm / 400 / 310
Spindle Speed
min -1 / 3200 [OP. 2000, 2500]
Rapid Traverse Rate
m/min / X : 20 / Z : 20
Spindle Motor （30 min/continuous）
kW / 11/9 [OP. 15/11, 18.5/15]
Machine Height
mm / 2200
Features
  • TK-2100/2600 Introduction video
  • Talk About "TK-2100/2600"
  • Inquiry about catalog request and product purchase
Request price & details →

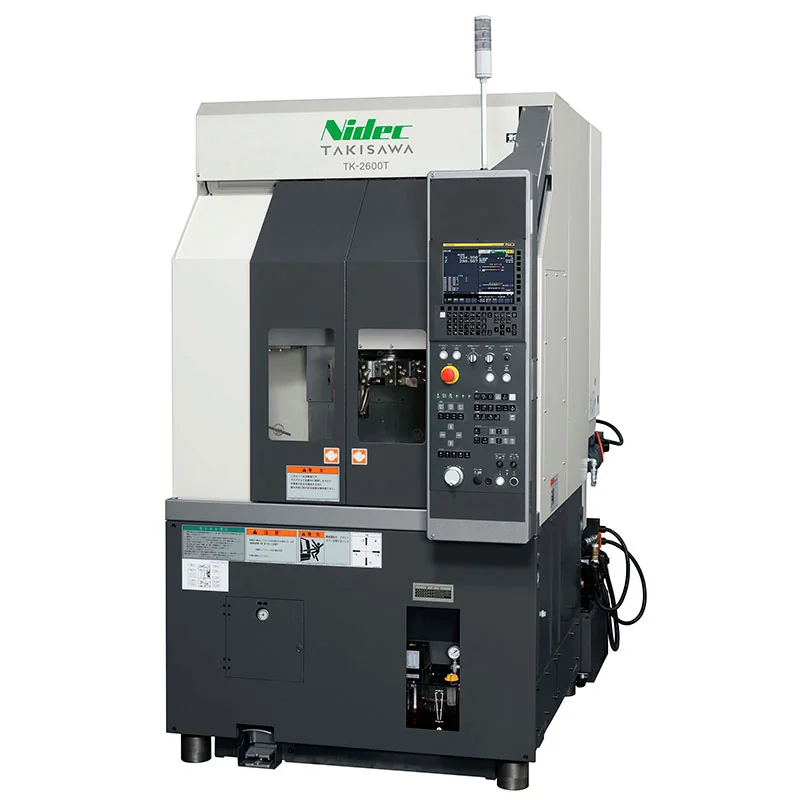

TK-2600

TK-Series Vertical CNC Lathe (1 Spindle / 1 Turret or Comb)

TK-2600

Fully redesigned 30-year long selling models.Definitive model of compact vertical lathe.

Key specifications
Chuck Size
inch / 10
Type of Turret
Comb Type Tool Slide / 6-Station Turret （Direct-Mount Type） / 8-Station Turret （Direct-Mount Type）
Max. Swing
mm / 400 《600》
Max. Turning Diameter
mm / - / φ355 / φ335
Max. Turning Length
mm / 347 / 257
Spindle Speed
min -1 / 2000 [OP. 2500]
Rapid Traverse Rate
m/min / X : 20 / Z : 20
Spindle Motor （30 min/continuous）
kW / 22/18.5 [OP. 18.5/15]
Machine Height
mm / 2200
Features
  • Talk About "TK-2100/2600"
  • Inquiry about catalog request and product purchase
Request price & details →

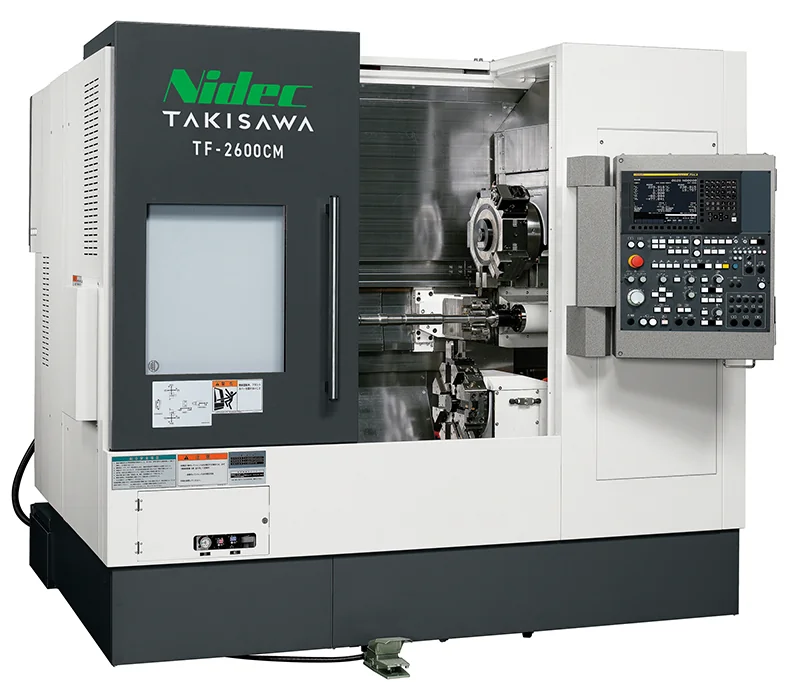

TF-2600

TF-Series Shaft machine tool (1 spindle 2 turrets)

TF-2600

Highly rigid shaft machine tool achieving both significant reduction of cutting time ranging from flange machining to shaft machining and very high chip disposal performance

Key specifications
Chuck Size
inch / 8 / 10
Type of Turret
6-Station Turret （Direct-Mount Type） / 8-Station Turret （Direct-Mount Type）
Max. Turning Diameter
mm / φ260
Max. Turning Length
mm / 750 / 650
Spindle Speed
min -1 / 3200 [OP. 5000] / 2500 [OP. 3000]
Rotary Tool Speed
min -1 / -
Rapid Traverse Rate
m/min / X : 20 / Z : 30 / A : 20 / R : 30
Spindle Motor
kW / 11/15 / 15/11（Wide Range）
Rotary Tool Motor
kW / -
Features
  • Powerful wide range motor (10" specification)
  • Highly rigid rectangular slideways
  • Vertical bed construction
Request price & details →

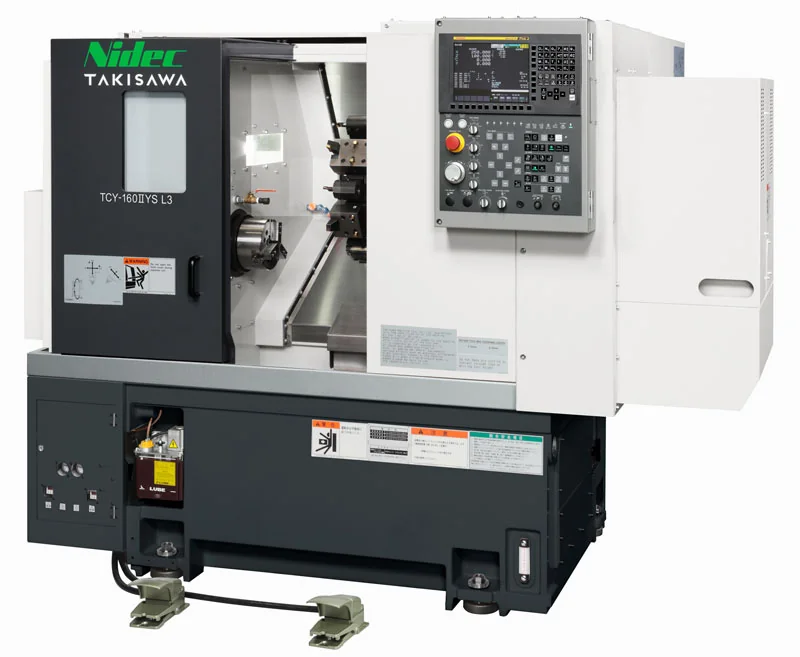

TCY-160Ⅱ

TCY-Series Combined Machining CNC Lathe (Y-Axis, Opposed Twin-Spindle / 1 Turret)

TCY-160Ⅱ

Process integration of small workpiece in compact

Key specifications
Right Spindle Stock
● / -
Tailstock (NC Servo Type)
- / ○
Y-Axis
●
Left C-Axis
●
Right C-Axis
● / -
Milling
●
Chuck Size
inch / 6+6 / 6
Type of Turret
12-Station Drum Turret, All-Holder Type
Max. Turning Diameter
mm / φ220《250》
Request price & details →

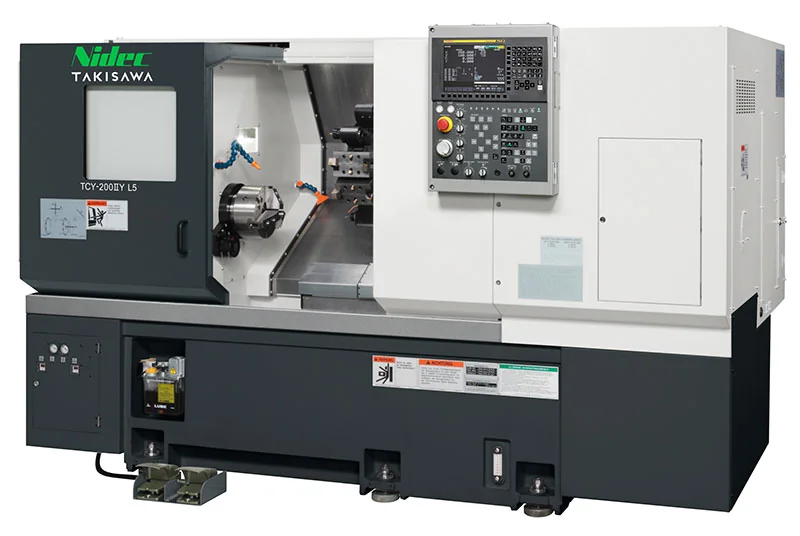

TCY-200Ⅱ

TCY-Series Combined Machining CNC Lathe (Y-Axis, Opposed Twin-Spindle / 1 Turret)

TCY-200Ⅱ

Process integration of small workpiece in compact

Key specifications
Right Spindle Stock
● / -
Tailstock (NC Servo Type)
- / ○
Y-Axis
●
Left C-Axis
●
Right C-Axis
● / -
Milling
●
Chuck Size
inch / 8+6 / 8
Type of Turret
12-Station Drum Turret, All-Holder Type
Max. Turning Diameter
mm / φ220《250》
Request price & details →

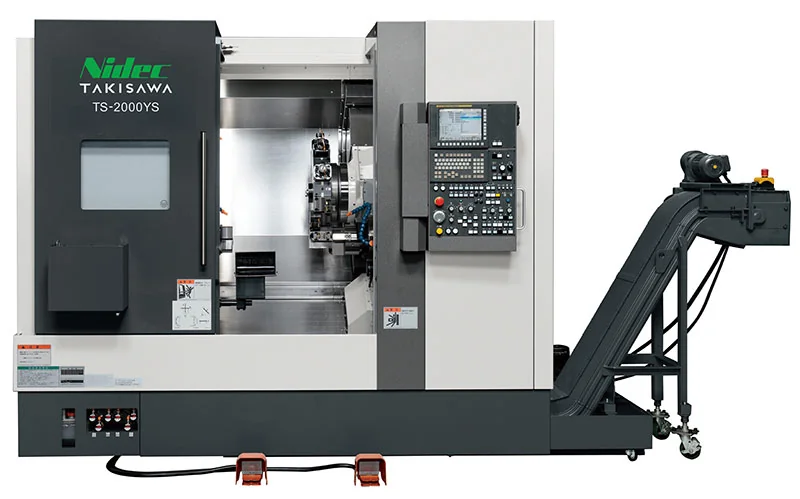

TS-2000

TS-Series Combined Machining CNC Lathe (Y-Axis, Opposed Twin-Spindle / 1 Turret)

TS-2000

Y-Axis, Opposed Twin-Spindle / 1 Turret Type TAKISAWA Superb Turning Center TS-2000YS!

Key specifications
Right Spindle Stock
●
Tailstock (NC Servo Type)
-
Chuck Size
inch / 6+6
Type of Turret
12-Station Turret （All-Holder Type） Standard / 10-Station Turret （All-Holder Type） / 15-Station Turret （All-Holder Type） / 20-Station Turret （All-Holder Type）
Max. Turning Diameter
mm / φ370 / φ315 / φ292
Max. Turning Length
mm / 565 / 550
Bar Capacity * 1
mm / φ51
Left Spindle Speed
min -1 / 6000
Right Spindle Speed
min -1 / 6000
Features
  • Talk About "TS-2000"
  • Sample Work Cutting
  • Inquiry about catalog request and product purchase
Request price & details →

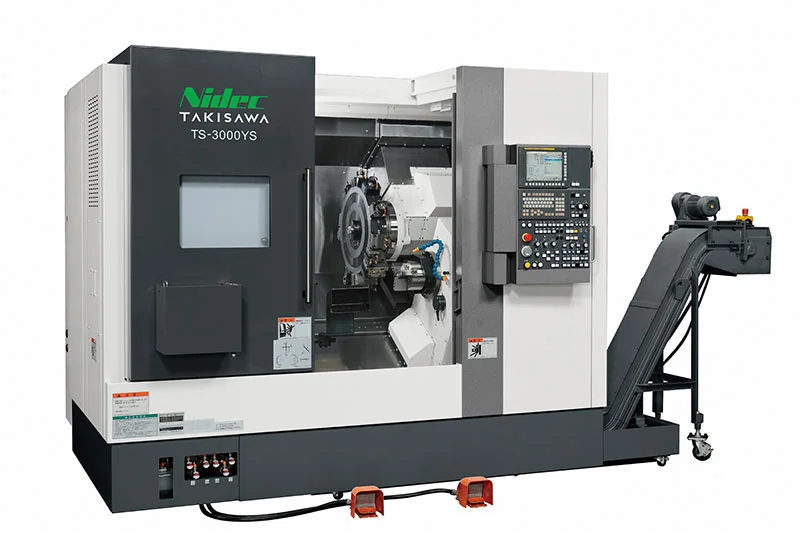

TS-3000

TS-Series Combined Machining CNC Lathe (Y-Axis, Opposed Twin-Spindle / 1 Turret)

TS-3000

Main Spindle A2-6,Y-Axis, Opposed Twin-Spindle / 1 Turret Type TAKISAWA Superb Turning Center TS-3000YS!

Key specifications
Right Spindle Stock
●
Tailstock (NC Servo Type)
-
Chuck Size
inch / 8+6
Type of Turret
12-Station Turret （All-Holder Type） Standard / 10-Station Turret （All-Holder Type） / 15-Station Turret （All-Holder Type） / 20-Station Turret （All-Holder Type）
Max. Turning Diameter
mm / φ370 / φ315 / φ292
Max. Turning Length
mm / 550 / 535 / 545
Bar Capacity * 1
mm / φ67
Left Spindle Speed
min -1 / 5000
Right Spindle Speed
min -1 / 6000
Features
  • Inquiry about catalog request and product purchase
Request price & details →

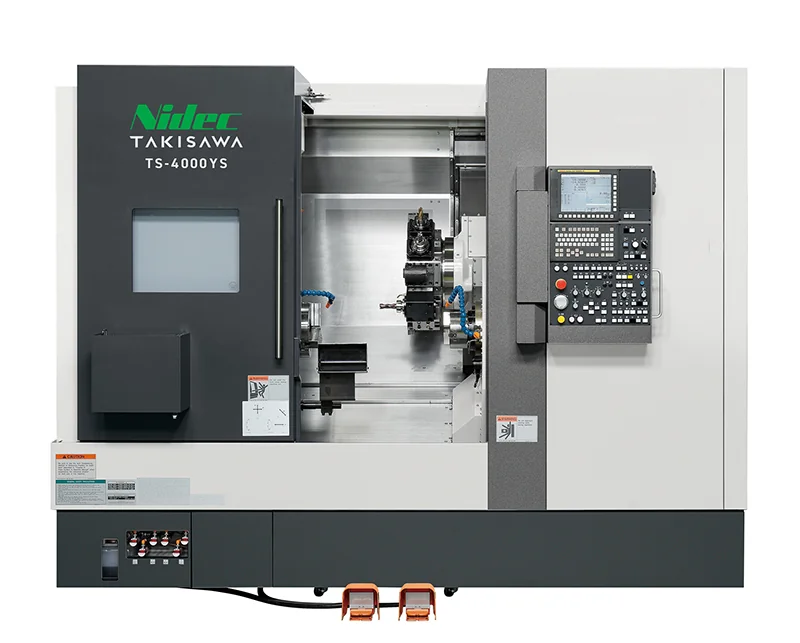

TS-4000

TS-Series Combined Machining CNC Lathe (Y-Axis, Opposed Twin-Spindle / 1 Turret)

TS-4000

Main Spindle A2-8,Y-Axis, Opposed Twin-Spindle / 1 Turret Type TAKISAWA Superb Turning Center TS-4000YS!

Key specifications
Right Spindle Stock
●
Tailstock (NC Servo Type)
-
Chuck Size
inch / 10+6
Type of Turret
12-Station Turret （All-Holder Type） Standard / 10-Station Turret （All-Holder Type） / 15-Station Turret （All-Holder Type） / 20-Station Turret （All-Holder Type）
Max. Turning Diameter
mm / φ370 / φ315 / φ292
Max. Turning Length
mm / 750 / 735
Bar Capacity * 1
mm / φ82
Left Spindle Speed
min -1 / 4200
Right Spindle Speed
min -1 / 6000
Features
  • Inquiry about catalog request and product purchase
Request price & details →

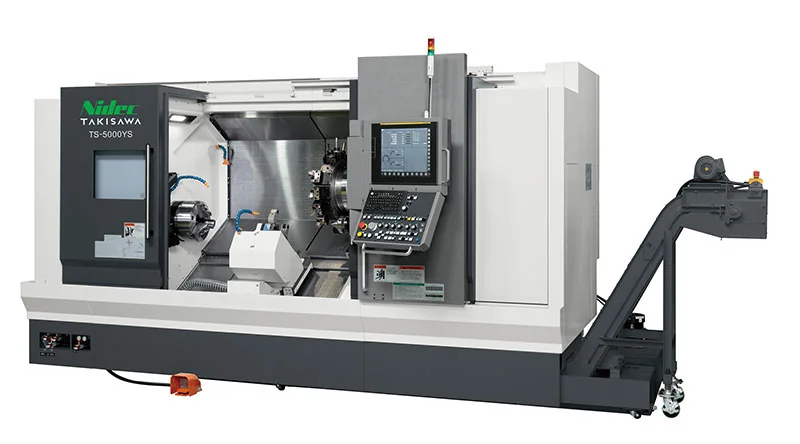

TS-5000

TS-Series Combined Machining CNC Lathe (Y-Axis, Opposed Twin-Spindle / 1 Turret)

TS-5000

Main Spindle A2-11,Y-Axis, Opposed Twin-Spindle / 1 Turret Type TAKISAWA Superb Turning Center TS-5000YS!

Key specifications
Right Spindle Stock
●
Tailstock (NC Servo Type)
-
Chuck Size
inch / 12+8
Type of Turret
12-Station Turret （All-Holder Type） Standard / 10-Station Turret （All-Holder Type） / 15-Station Turret （All-Holder Type） / 20-Station Turret （All-Holder Type）
Max. Turning Diameter
mm / φ370 / φ315 / φ292
Max. Turning Length
mm / 1300 / 1285
Bar Capacity * 1
mm / φ102 [OP. φ82]
Left Spindle Speed
min -1 / 2500 [OP. 4200]
Right Spindle Speed
min -1 / 5000 [OP. 6000]
Features
  • Inquiry about catalog request and product purchase
Request price & details →

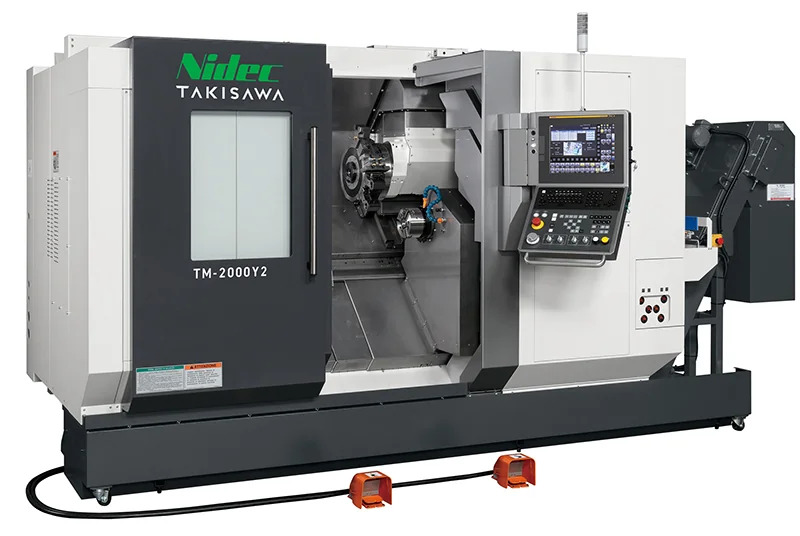

TM-2000Y2

TM-Series Combined Machining CNC Lathe (Opposed Twin-Spindle, Twin-Turret)

TM-2000Y2

Highly productive compact machine. Bar capacity: φ51 mm. Multi-Tasking CNC lathe with upper/lower Y-axes optimum for bar workpieces. In-machine workpiece discharge is automated, and automatic discharge is enabled without considering floor space.

Key specifications
Upper Turret Y-Axis (Y1-Axis)
●
Lower Turret Y-Axis (Y2-Axis)
●
Right Spindle
●
Chuck Size
inch / 6
Type of Turret
12-Station Turret (T12)
Max. Turning Diameter
mm / φ215
Max. Turning Length
mm / 640
Bar Capacity * 1
mm / φ51
Left Spindle Speed
min -1 / 5000
Features
  • TM-2000Y2 Introduction video
  • The highly rigid 45° slant bed
  • Upper/Lower Y-Axis (Y1/Y2-Axis : +45～-45mm)
  • 15/11kW High power & high torque motor spindle!
Request price & details →

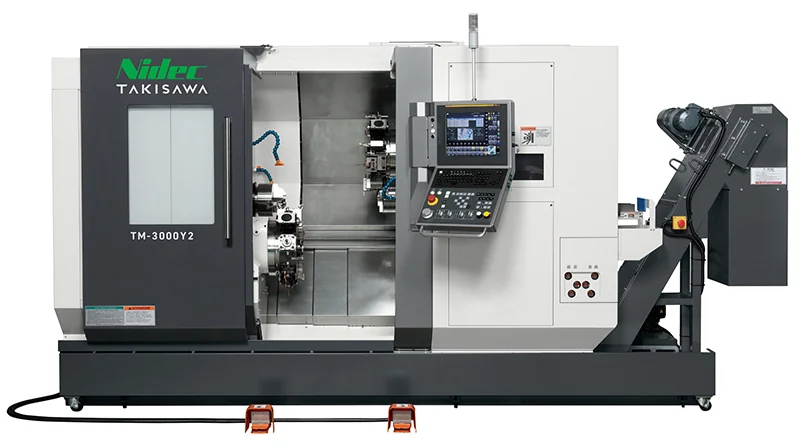

TM-3000Y2

TM-Series Combined Machining CNC Lathe (Opposed Twin-Spindle, Twin-Turret)

TM-3000Y2

Highly productive compact machine. Bar capacity: φ65 mm. Multi-Tasking CNC lathe with upper/lower Y-axes optimum for bar workpieces. In-machine workpiece discharge is automated, and automatic discharge is enabled without considering floor space.

Key specifications
Upper Turret Y-Axis (Y1-Axis)
●
Lower Turret Y-Axis (Y2-Axis)
●
Right Spindle
●
Chuck Size
inch / 8
Type of Turret
12-Station Turret (T12)
Max. Turning Diameter
mm / φ215
Max. Turning Length
mm / 620
Bar Capacity * 1
mm / φ65
Left Spindle Speed
min -1 / 4500
Features
  • The highly rigid 45° slant bed
  • Upper/Lower Y-Axis (Y1/Y2-Axis : +45～-45mm)
  • 15/11kW High power & high torque motor spindle!
  • Stronger Milling Motor 5.5/3.7kW
Request price & details →

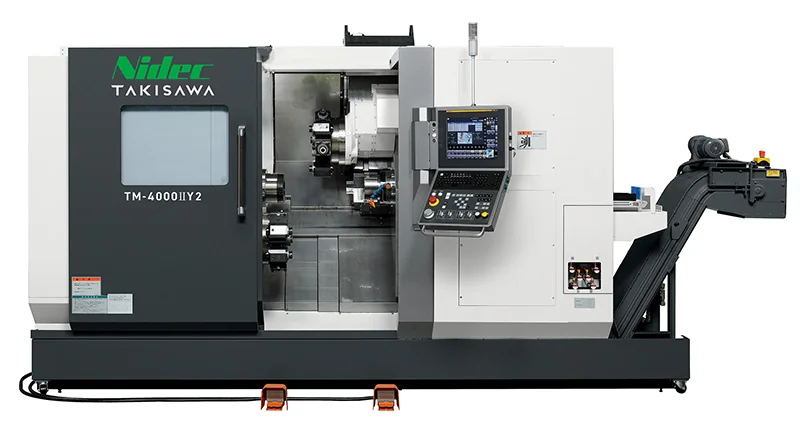

TM-4000ⅡY2

TM-Series Combined Machining CNC Lathe (Opposed Twin-Spindle, Twin-Turret)

TM-4000ⅡY2

Highly productive compact machine. Bar capacity: φ82 mm. Multi-Tasking CNC lathe with upper/lower Y-axes optimum for bar workpieces. In-machine workpiece discharge is automated, and automatic discharge is enabled without considering floor space.

Key specifications
Upper Turret Y-Axis (Y1-Axis)
●
Lower Turret Y-Axis (Y2-Axis)
●
Right Spindle
●
Chuck Size
inch / 8
Type of Turret
12-Station Turret (T12)
Max. Turning Diameter
mm / φ215
Max. Turning Length
mm / 800
Bar Capacity * 1
mm / φ82
Left Spindle Speed
min -1 / 4200
Features
  • TM-4000Y2 Introduction video
  • Talk About "TM-4000"
  • Loading Variation
  • The highly rigid 45° slant bed
Request price & details →

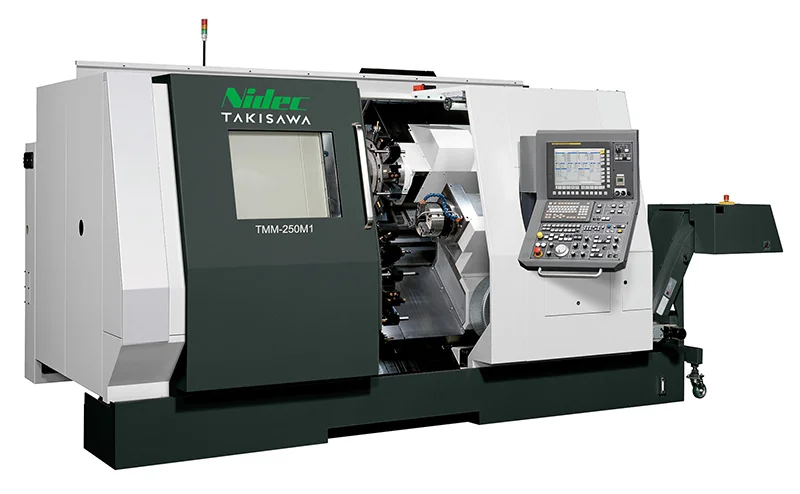

TMM-250M1

TMM-Series High efficiency, Combined Machining CNC Lathe (Opposed Twin-Spindle, Twin-Saddle)

TMM-250M1

Milling and Y-axis control realize highly efficient process integration. Module-1 contributes to high productivity.

Key specifications
Upper Turret
●
Lower Turret
●
Chuck Size
inch / 10+8
Type of Turret
15-Station Turret(T15)
Max. Turning Diameter
mm / φ350
Max. Turning Length
mm / 800/200 (Flange)
Bar Capacity（Left Spindle） *1
mm / φ76.2
Bar Capacity（Right Spindle） *1
mm / φ50.8
Left Spindle Speed
min -1 / 4000
Request price & details →

Multi-Tasking Machine

B-axis and tool-spindle multi-tasking machines for done-in-one turning and milling.

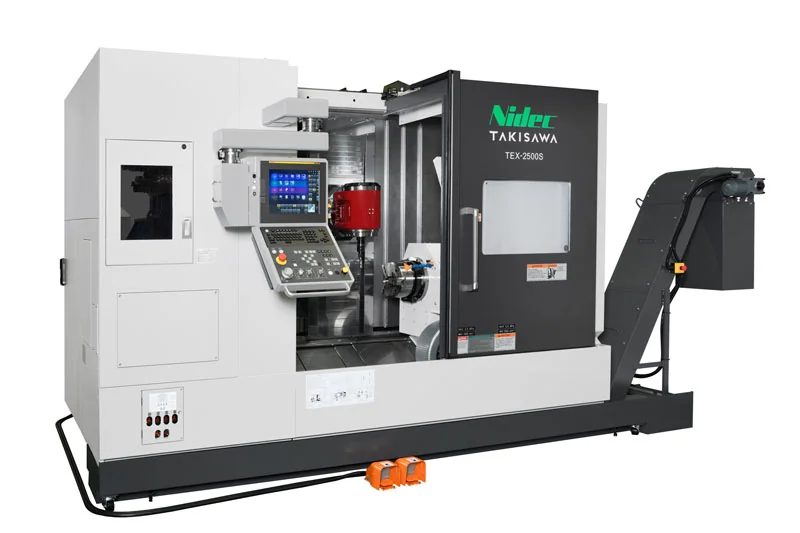

TEX-2500S

TEX-Series Multi-Tasking Machine (Tool Spindle Type : B-Axis & ATC)

TEX-2500S

A middle-class tool spindle type multi-tasking machine that combines the speed of a turret lathe with the versatility of a multi-tasking machine. Developed in pursuit of three values: "Flexible, Fast, and Economic."

Key specifications
Right Spindle Stock
●
Chuck Size
inch / 10+10
Type of Turret
Tool Spindle with ATC
Max. Turning Diameter
mm / φ400
Max. Turning Length * 1
mm / 1100
Bar Capacity（Left Spindle） * 2
mm / φ80
B-Axis Swivel Range
deg / 240（±120）
Left Spindle Speed
min -1 / 4000
Right Spindle Speed
min -1 / 4000
Features
  • Supports operation by careless mistake prevention function.
  • i HMI Machining Program Creation Support
  • Conversational Programming for Lathe(PANEL iH Pro)
  • Machine Collision Avoidance （PANEL iH Pro）
Request price & details →

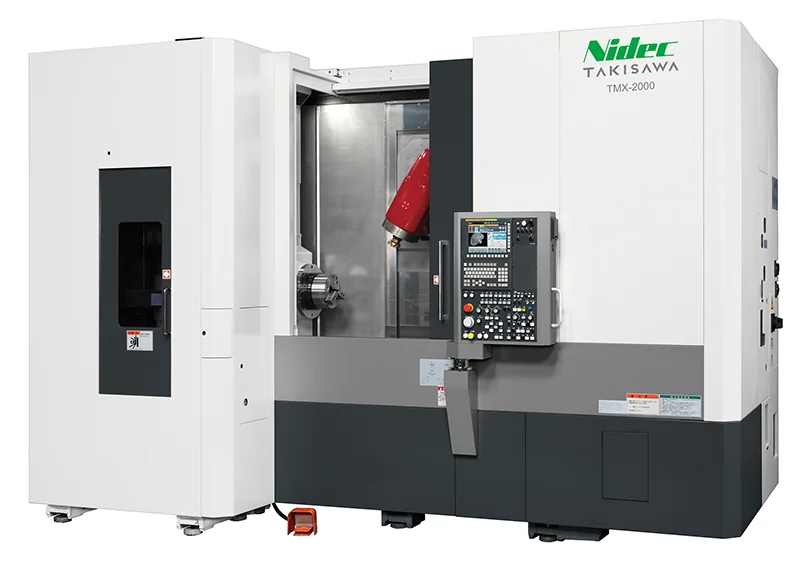

TMX-2000

TMX-Series Multi-Tasking Machine (Tool Spindle Type : B-Axis & ATC)

TMX-2000

Usability is realized by large axis travel of X-axis 640 mm, Y-axis 230 mm, and Z-axis 690 mm . Thanks to the large travel amount, highly accurate machining of such as milling and end face drilling is possible by one chucking with the C-axis (spindle) fixed.

Key specifications
Right Spindle Stock
- / ●
Tailstock (NC Servo Type)
● / -
Chuck Size
inch / 8 / 8+8
Type of Turret
Tool Spindle with ATC
Max. Turning Diameter
mm / φ500
Max. Turning Length * 1
mm / 610
Bar Capacity（Left Spindle） * 2
mm / φ65
Bar Capacity（Right Spindle） * 2
mm / - / φ51
B-Axis Swivel Range
deg / 230 （±115）
Features
  • Inquiry about catalog request and product purchase
Request price & details →

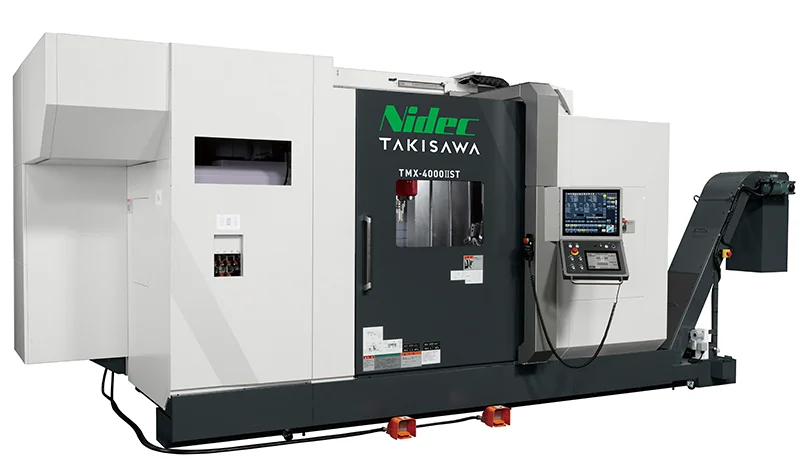

TMX-4000

TMX-Series Multi-Tasking Machine (Tool Spindle Type : B-Axis & ATC)

TMX-4000

Multitasking Machine with Powerful Tool Spindle and Highly Accurate Left/Right Spindle

Key specifications
Right Spindle Stock
● / -
Tailstock
- / ●
Lower Turret (12-Station)
● / -
Chuck Size
inch / 10+10 / 10
Type of Turret
Tool Spindle with ATC
Max. Turning Diameter
mm / φ500
Max. Turning Length * 1
mm / 1500
Bar Capacity（Left Spindle） * 2
mm / φ80
B-Axis Swivel Range
deg / 230 （±115）
Features
  • TMX-4000 Introduction video
  • Talk About "TMX-4000"
  • Large Diameter U-drilling (SUS304)
  • High-Speed Cutting (SUS304)
Request price & details →

Non-Circular Machining CNC Lathe

Specialised CNC lathes for pistons and non-circular profiles.

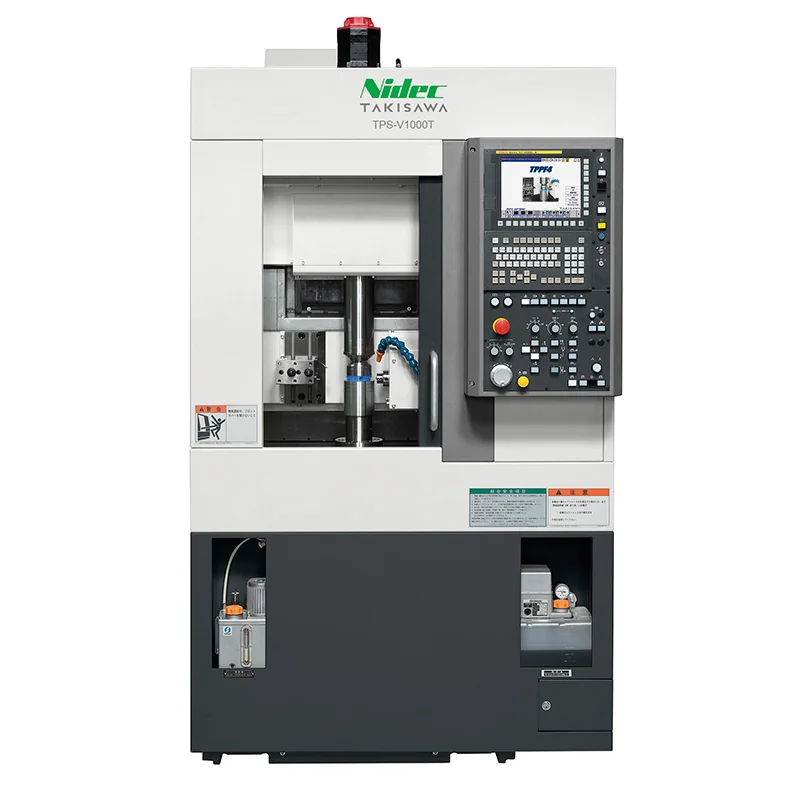

TPS-V1000

TPS-Series Non-Circular Machining CNC Lathe

TPS-V1000

Machine width 1180 mm smallest in class Next-Generation vertical machine is newly added !

Key specifications
Tailstock
- / ●
Max. Turning Diameter/Max. Turning Length
mm / φ130 / 160
Spindle Speed
min -1 / 4000
Type of Turret
for Non-Circular Machining
Spindle Motor
kW / 15/11
Electric Power
kVA / 20 / 21
Air Pressure Source
MPa / 0.5
Machine Height
mm / 2200
Required Floor Space
mm / 1180×3075
Request price & details →

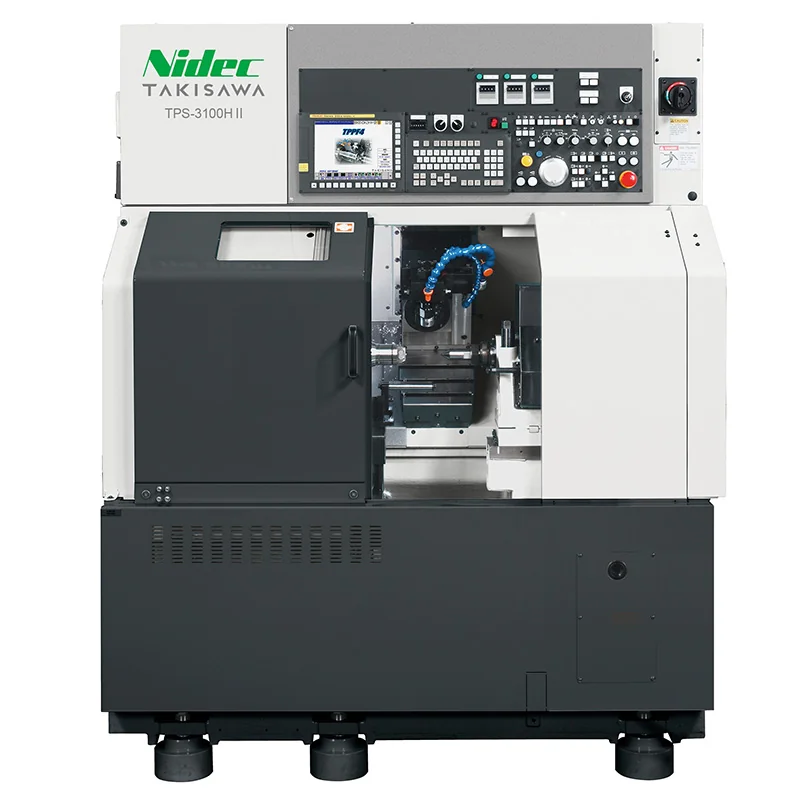

TPS-3100HⅡ

TPS-Series Non-Circular Machining CNC Lathe

TPS-3100HⅡ

All functions necessaries for engine piston OD oval machining are integrated into one machine.

Key specifications
Max. Turning Diameter/Max. Turning Length
mm / φ290 / 370
Spindle Speed
min -1 / 4000
Type of Turret
for Non-Circular Machining
Spindle Motor
kW / 11
Electric Power
kVA / 21.3
Air Pressure Source
MPa / 0.5
Machine Height
mm / 1970
Required Floor Space
mm / 1600×2370
Machine Weight
kg / 3000
Request price & details →

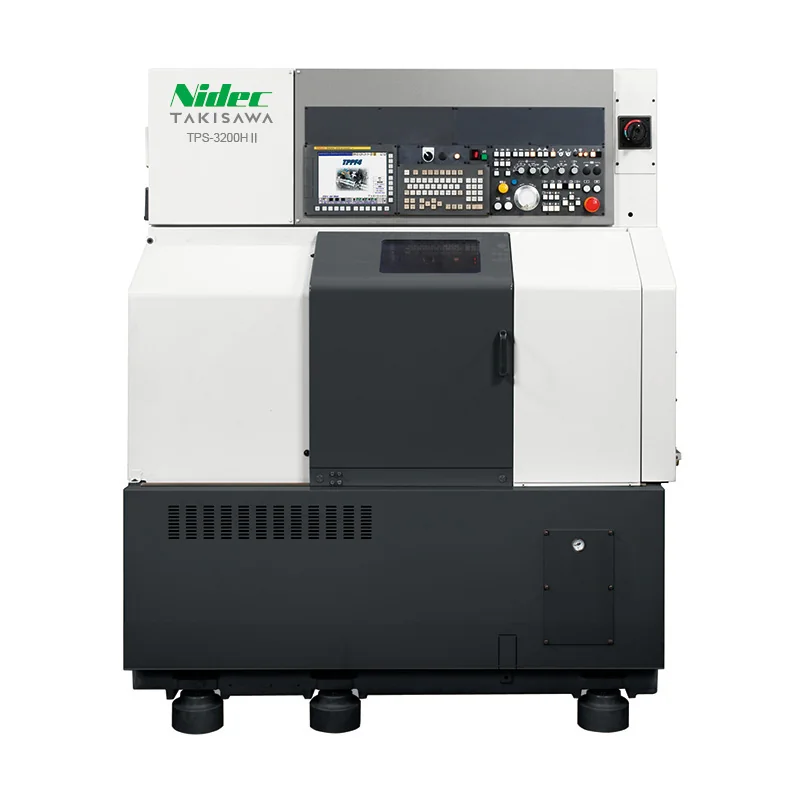

TPS-3200HⅡ

TPS-Series Non-Circular Machining CNC Lathe

TPS-3200HⅡ

Oval machining of piston ring ID and OD, and Cut off can be done.

Key specifications
Max. Turning Diameter/Max. Turning Length
mm / φ246 / 320
Spindle Speed
min -1 / 1000
Type of Turret
for Non-Circular Machining
Spindle Motor
kW / 7
Electric Power
kVA / 14.0
Air Pressure Source
MPa / 0.5
Machine Height
mm / 1900
Required Floor Space
mm / 1795×1850
Machine Weight
kg / 2600
Request price & details →

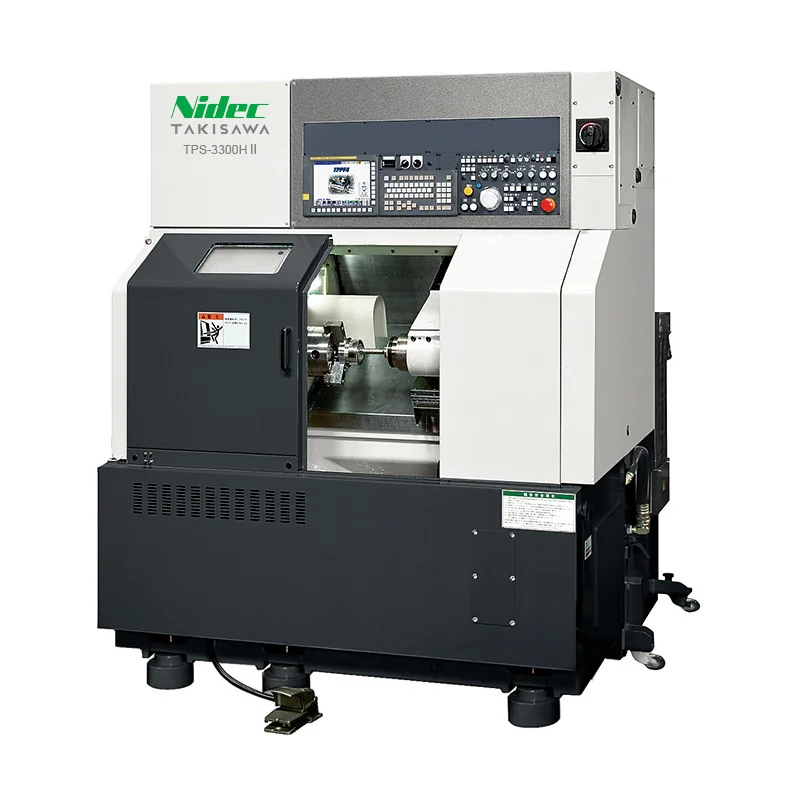

TPS-3300HⅡ

TPS-Series Non-Circular Machining CNC Lathe

TPS-3300HⅡ

That provides total solution for pin hole machining!

Key specifications
Spindle Speed
min -1 / Left Spindle：1000 / Rotating Tool：42000
Type of Turret
Tool Spindle
Spindle Motor
kW / 7 / Rotating Tool：15
Electric Power
kVA / 30.3
Air Pressure Source
MPa / 0.5
Machine Height
mm / 1970
Required Floor Space
mm / 1795×2640
Machine Weight
kg / 2800
Request price & details →

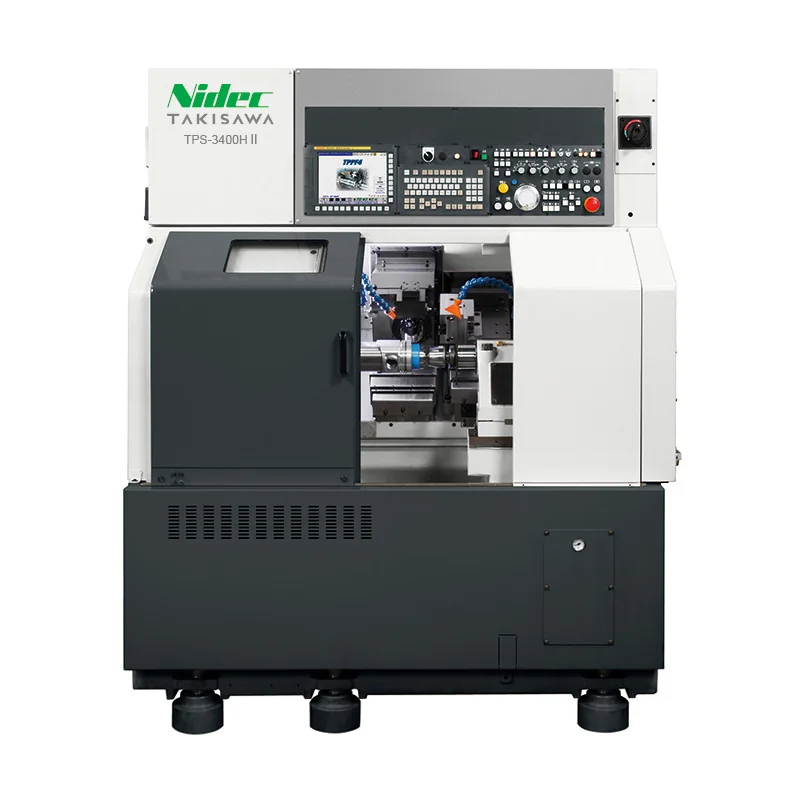

TPS-3400HⅡ

TPS-Series Non-Circular Machining CNC Lathe

TPS-3400HⅡ

Process Reduction by OD Oval Machining and Ring Groove Machining of Automobile Engine Pistons

Key specifications
Max. Turning Diameter/Max. Turning Length
mm / φ260 / 285
Spindle Speed
min -1 / 4000
Type of Turret
for Non-Circular Machining
Spindle Motor
kW / 11
Electric Power
kVA / 22.2
Air Pressure Source
MPa / 0.5
Machine Height
mm / 1970
Required Floor Space
mm / 1600×2370
Machine Weight
kg / 3000
Request price & details →

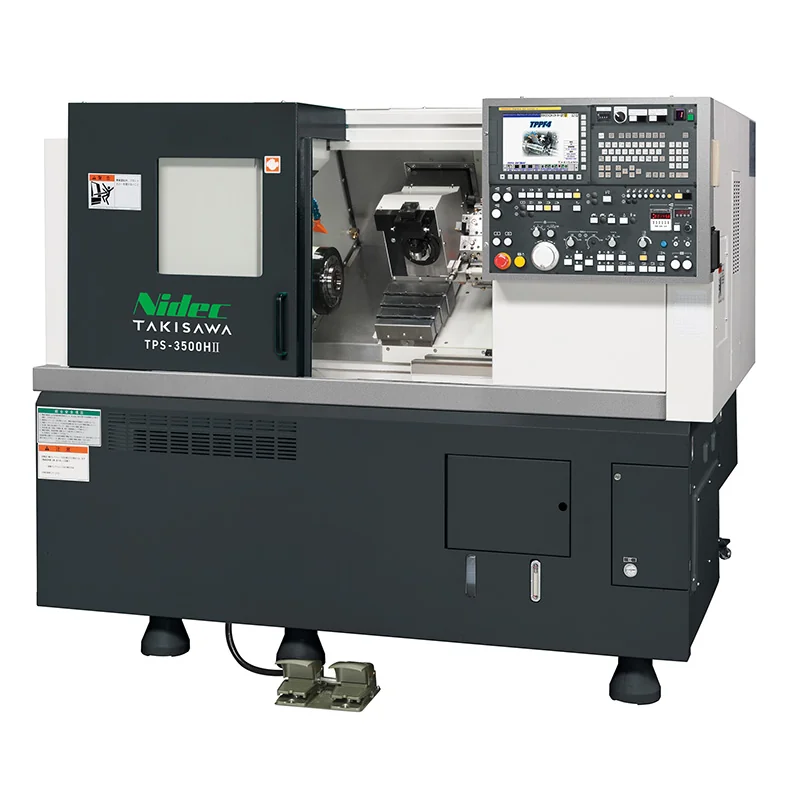

TPS-3500HⅡ

TPS-Series Non-Circular Machining CNC Lathe

TPS-3500HⅡ

A complete elliptical piston machining process consolidated within a compact and robust enclosure providing oval and standard piston turning.

Key specifications
Max. Turning Diameter/Max. Turning Length
mm / φ260 / 250
Spindle Speed
min -1 / 4000
Type of Turret
for Non-Circular Machining
Spindle Motor
kW / 11
Electric Power
kVA / 23.0
Air Pressure Source
MPa / 0.5
Machine Height
mm / 1725
Required Floor Space
mm / 2125×2500
Machine Weight
kg / 3600
Request price & details →

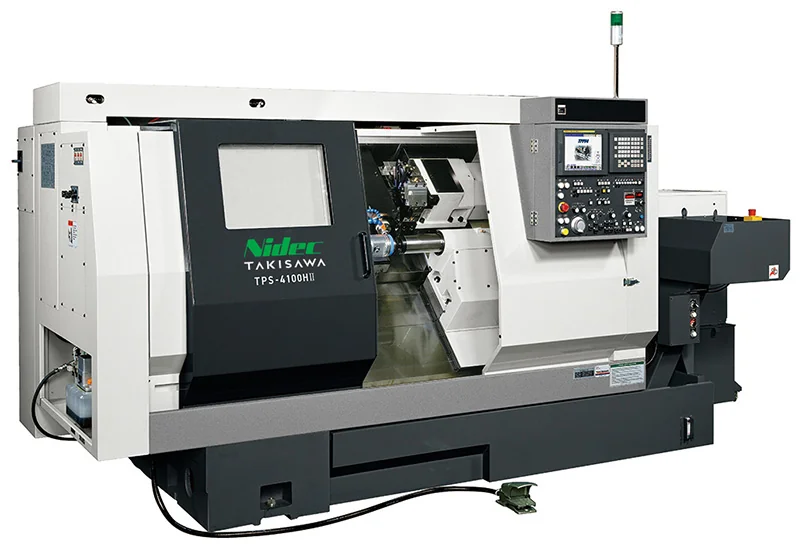

TPS-4100HⅡ

TPS-Series Non-Circular Machining CNC Lathe

TPS-4100HⅡ

A process integration type machine in which non-circular machining function is integrated in the 2-axis CNC lathe can provide a high efficiency machining of pistons, etc. in variable-kind variable-lot flexible productions.

Key specifications
Max. Turning Diameter/Max. Turning Length
mm / φ320 / 250
Spindle Speed
min -1 / 4000
Type of Turret
T1:Octagonal Drum Turret
Spindle Motor
kW / 11/7.5
Electric Power
kVA / 28.1
Air Pressure Source
MPa / 0.5
Machine Height
mm / 1850
Required Floor Space
mm / 3880×2673
Machine Weight
kg / 5500
Request price & details →

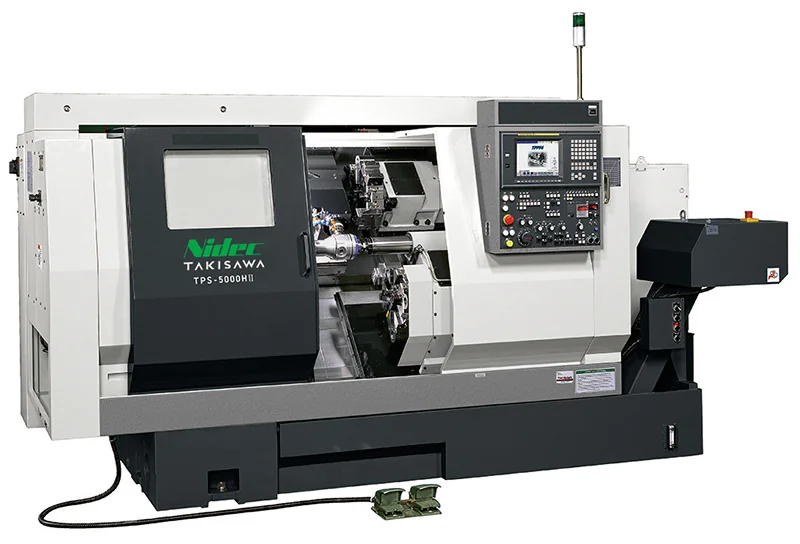

TPS-5000HⅡ

TPS-Series Non-Circular Machining CNC Lathe

TPS-5000HⅡ

A process integration type machine in which non-circular machining is integrated in the 2-turret 4-axis CNC lathe to provide a high efficiency machining of pistons. etc. in variable-kind variable-lot flexible productions

Key specifications
Max. Turning Diameter/Max. Turning Length
mm / φ320 / 250
Spindle Speed
min -1 / Turning:4000、Non-Circular:3000
Type of Turret
T1,T2:Turning Turret
Spindle Motor
kW / 11/7.5
Electric Power
kVA / 30.8
Air Pressure Source
MPa / 0.5
Machine Height
mm / 1850
Required Floor Space
mm / 3880×2673
Machine Weight
kg / 6000
Request price & details →

Machining Center

Vertical machining centres for milling, drilling and tapping.

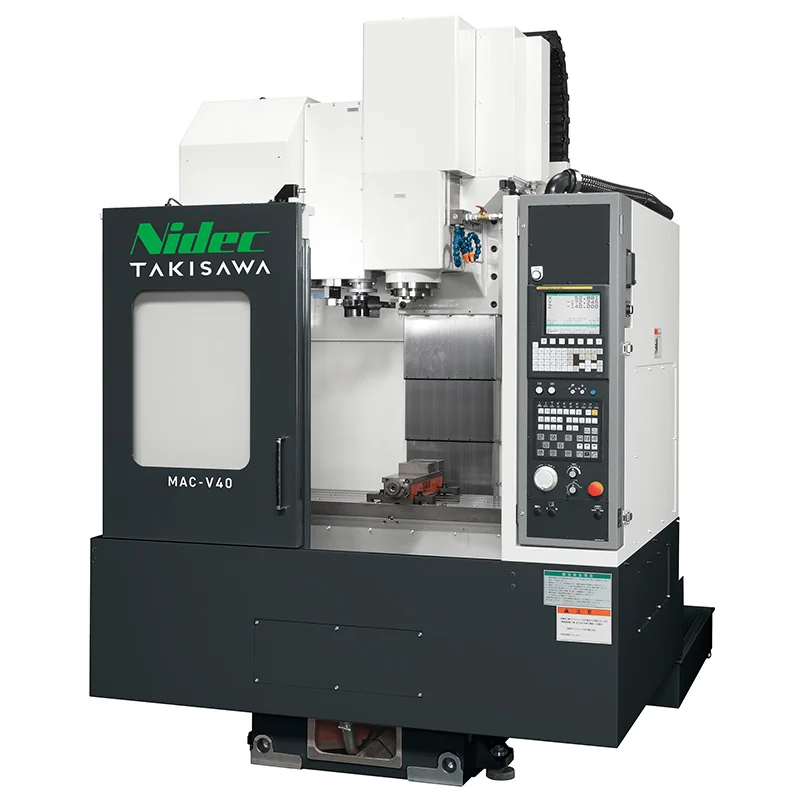

MAC-V40

MAC-Series

MAC-V40

Increased machine rigidity enables high-speed and heavy-duty cutting of small and medium parts.

Key specifications
X-Axis Travel (Table Longitudinal)
mm / 650
Y-AxisTravel (Saddle Cross)
mm / 410
Z-Axis Travel (Spindle Head Vertical)
mm / 460
Table Working Area
mm / 900×410
Table Max. Loading Capacity
kg / 300
Spindle Speed
min -1 / 6000 [OP. 8000]
Type of Tool Shank/Tool Storage Capacity
BT40 / 20 [OP. 30]
Spindle Motor
KW / 11/7.5
Electric Power
kVA / 18.5
Features
  • High-rigidity Oriented Design
  • Increased machine rigidity enables high-speed and heavy-duty cutting of small and medium parts. Upgrading the reliability and cost-performance.
  • High-speed heavy-duty cutting and high accuracy
Request price & details →

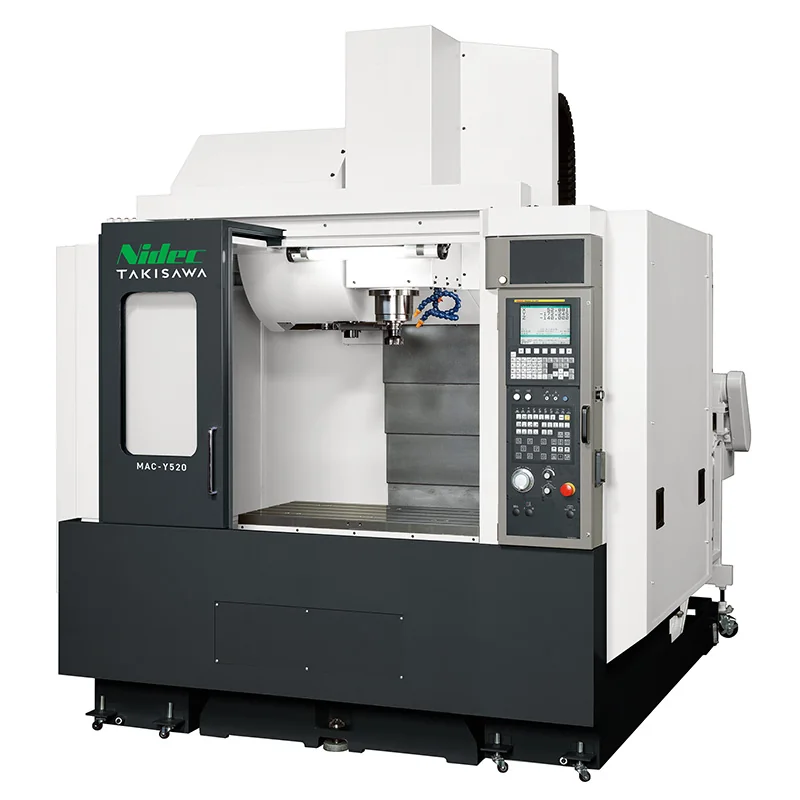

MAC-Y520

MAC-Series

MAC-Y520

#40 Machining Center Provides #50 Class of Machining Stroke

Key specifications
X-Axis Travel (Table Longitudinal)
mm / 850
Y-AxisTravel (Saddle Cross)
mm / 520
Z-Axis Travel (Spindle Head Vertical)
mm / 610
Table Working Area
mm / 1000×520
Table Max. Loading Capacity
kg / 800
Spindle Speed
min -1 / 8000 (OP:12000)
Type of Tool Shank/Tool Storage Capacity
BT40 / 30 Tools
Spindle Motor
KW / 11/7.5
Electric Power
kVA / 18.8
Features
  • Existing tools for #40 machining centers and drill center can be used as they are on this machine having longer strokes, thus enabling multiple kinds of machining of larger workpieces including casings, and also raising the cost-effectiveness and profitability. Travel X-Axis : 850mm, Y-Axis : 520mm, Z-Axis : 610mm
Request price & details →

CNC / Manual Lathe (CNC-capable hybrid)

CNC / Manual Lathe (CNC-capable hybrid) range.

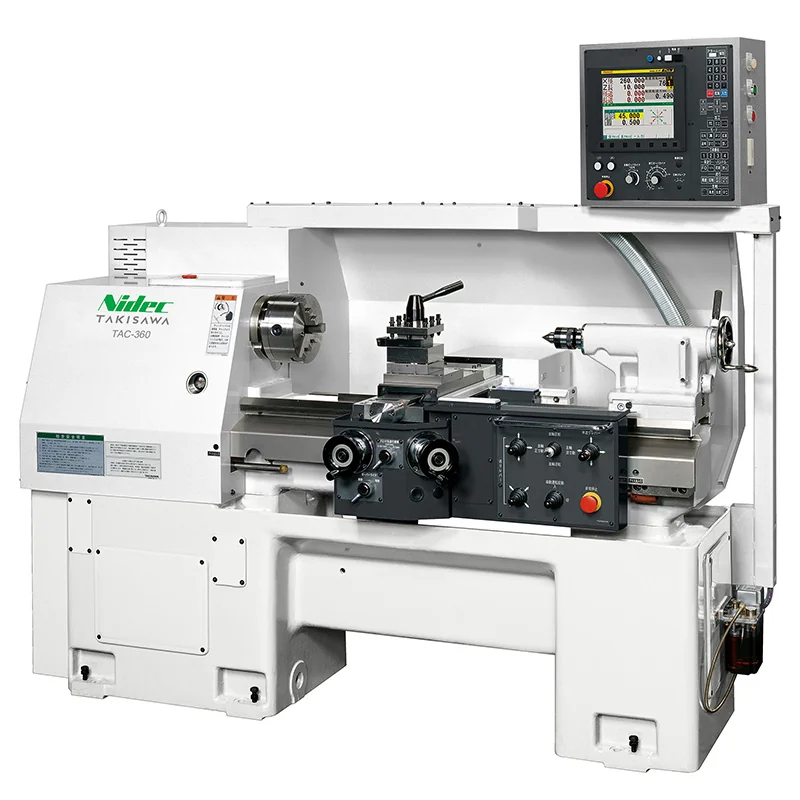

TAC-360

TAC-Series

TAC-360

Key specifications
Swing Over Bed
mm / 360
Swing Over Cross Slide
mm / 190
Turning Length
mm / 770
Spindle Speed Range
min -1 / 60～2000
Thread Cutting/ Number of Registered Threads
Type / Already Registered 32 Types + Any 8 Types Registrable
Range of Metric Thread (Pitch)
mm / 0.001～500(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 6000.
Range of Inch Threads (Pitch)
TPI / 999.99999～0.05080(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 6000.
Spindle Motor
KW / 3.7/5.5
Electric Power
kVA / 8
Features
  • Takisawa's unique "RAKU-RAKU software" Unnecessary of NC Programming Knowledge Easy Input Operation
  • RAKU-RAKU Expert’s excellent operability that will make the operator feel convenient.
Request price & details →

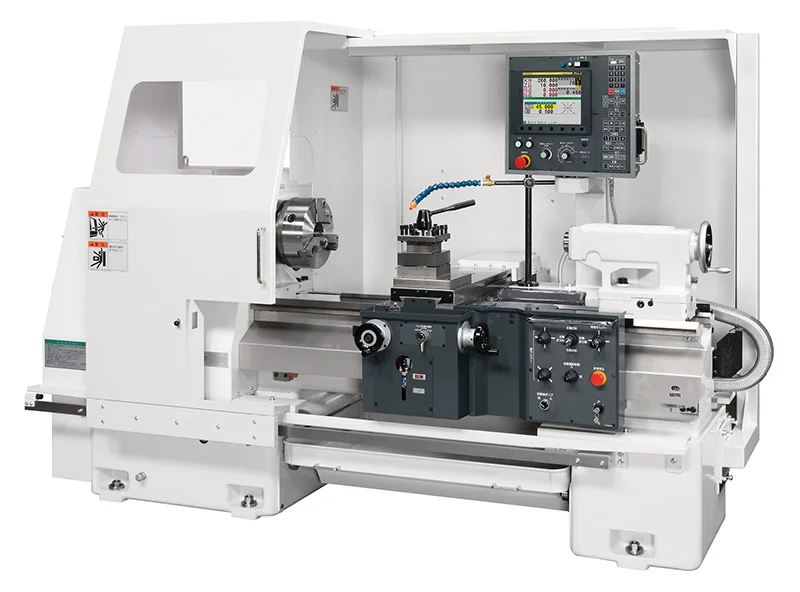

TAC-510

TAC-Series

TAC-510

High performance in all cutting scenes from powerful lathing to sophisticated machining !

Key specifications
Swing Over Bed
mm / 510
Swing Over Cross Slide
mm / 270
Turning Length
mm / L10(1010), L15(1510)
Spindle Speed Range
min -1 / 15～1500 [OP.20～2000]
Thread Cutting/ Number of Registered Threads
Type / Already Registered 32 Types + Any 8 Types Registrable
Range of Metric Thread (Pitch)
mm / 0.001～500(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 5000.
Range of Inch Threads (Pitch)
TPI / 999.99999～0.05080(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 5000.
Spindle Motor
KW / 7.5/9
Electric Power
kVA / 11
Features
  • Takisawa's unique "RAKU-RAKU software" Unnecessary of NC Programming Knowledge Easy Input Operation
  • RAKU-RAKU Expert’s excellent operability that will make the operator feel convenient.
Request price & details →

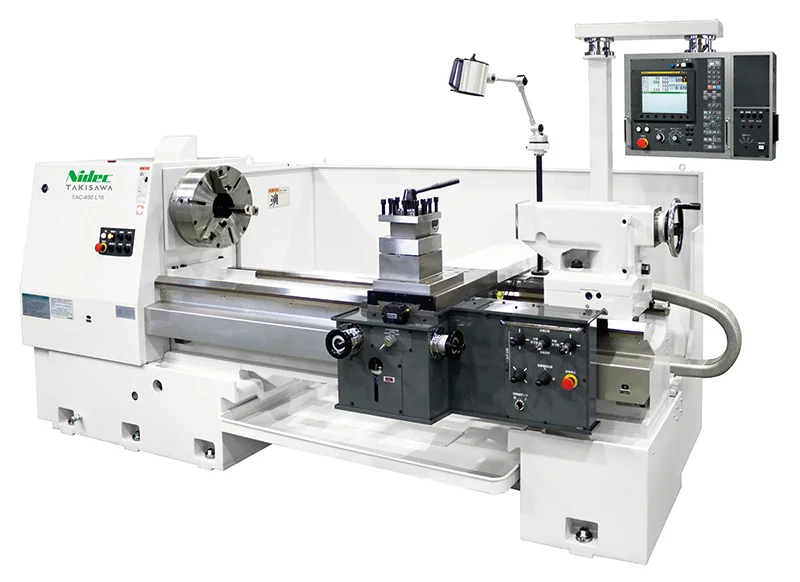

TAC-650

TAC-Series

TAC-650

Medium sized model covering any cutting scenes from lathing of small and medium parts up to long-bar machining!

Key specifications
Swing Over Bed
mm / 650
Swing Over Cross Slide
mm / 400
Turning Length
mm / L10(1040)～L30(3040)
Spindle Speed Range
min -1 / 12～1200 [OP.10～1000]
Thread Cutting/ Number of Registered Threads
Type / Already Registered 32 Types + Any 8 Types Registrable
Range of Metric Thread (Pitch)
mm / 0.001～500(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 5000.
Range of Inch Threads (Pitch)
TPI / 999.99999～0.05080(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 5000.
Spindle Motor
KW / 11/15
Electric Power
kVA / 17
Features
  • Takisawa's unique "RAKU-RAKU software" Unnecessary of NC Programming Knowledge Easy Input Operation
  • RAKU-RAKU Expert’s excellent operability that will make the operator feel convenient.
  • Various Spindle-Through Hole Diameter Standard：φ 105 、 [OP：φ115/φ135]
Request price & details →

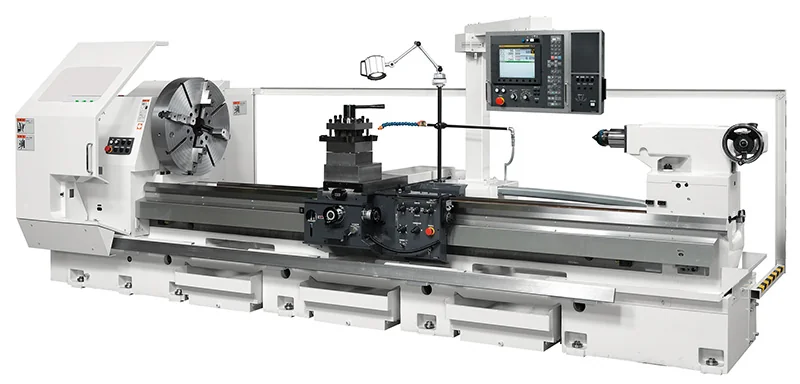

TAC-800

TAC-Series

TAC-800

Powerful lathing of large diameter and medium/ long workpieces!

Key specifications
Swing Over Bed
mm / 820
Swing Over Cross Slide
mm / 540
Turning Length
mm / L10(1052)～L60(6052)
Spindle Speed Range
min -1 / 10～1000 [OP.10～1000, 9～800]
Thread Cutting/ Number of Registered Threads
Type / Already Registered 32 Types + Any 8 Types Registrable
Range of Metric Thread (Pitch)
mm / 0.001～500(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 5000.
Range of Inch Threads (Pitch)
TPI / 999.99999～0.05080(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 5000.
Spindle Motor
kW / 11/15
Electric Power
kVA / 17
Features
  • Takisawa's unique "RAKU-RAKU software" Unnecessary of NC Programming Knowledge Easy Input Operation
  • RAKU-RAKU Expert’s excellent operability that will make the operator feel convenient.
  • Large Diameter Work, through-hole diameter are φ 180 , φ 260 .
  • Turning Length : 1000mm～6000mm
Request price & details →

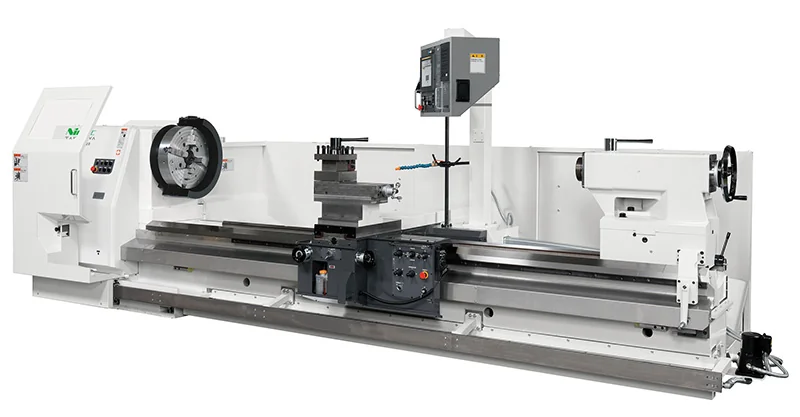

TAC-950

TAC-Series

TAC-950

Safety work oriented! High power and high performance large-sized model !

Key specifications
Swing Over Bed
mm / 950
Swing Over Cross Slide
mm / 600
Turning Length
mm / L20(2370)～L60(6370)
Spindle Speed Range
min -1 / 9～850
Thread Cutting/ Number of Registered Threads
Type / Already Registered 32 Types + Any 8 Types Registrable
Range of Metric Thread (Pitch)
mm / 0.001～500(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 5000.
Range of Inch Threads (Pitch)
TPI / 999.99999～0.05080(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 5000.
Spindle Motor
kW / 15/18.5
Electric Power
kVA / 22
Features
  • Takisawa's unique "RAKU-RAKU software" Unnecessary of NC Programming Knowledge Easy Input Operation
  • RAKU-RAKU Expert’s excellent operability that will make the operator feel convenient.
  • Turning Length : 2000mm～6000mm
Request price & details →

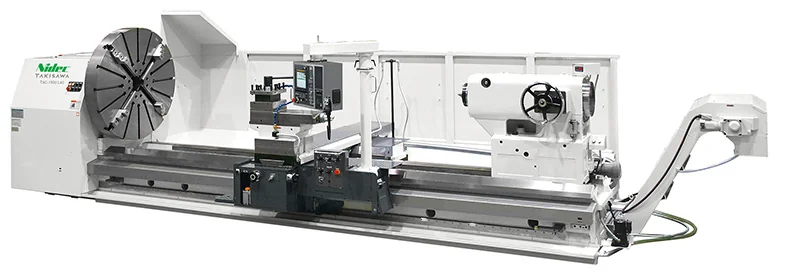

TAC-1500

TAC-Series

TAC-1500

Definitive model for machining of large workpieces! Powerful lathing of large diameter and long work!

Key specifications
Swing Over Bed
mm / 1500
Swing Over Cross Slide
mm / 1080
Turning Length (Distance Between Centers)
mm / L20(2000)～L60(6000)
Spindle Speed Range
min -1 / 8～600
Thread Cutting/ Number of Registered Threads
Type / Already Registered 32 Types + Any 8 Types Registrable
Range of Metric Thread (Pitch)
mm / 0.001～500(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 5000.
Range of Inch Threads (Pitch)
TPI / 999.99999～0.05080(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 5000.
Spindle Motor
KW / 30/22 [OP.37/30]
Electric Power
KVA / 32 [OP.42]
Features
  • Takisawa's unique "RAKU-RAKU software" Unnecessary of NC Programming Knowledge Easy Input Operation
  • RAKU-RAKU Expert’s excellent operability that will make the operator feel convenient.
  • Turning Length : 2000mm～5000mm
Request price & details →

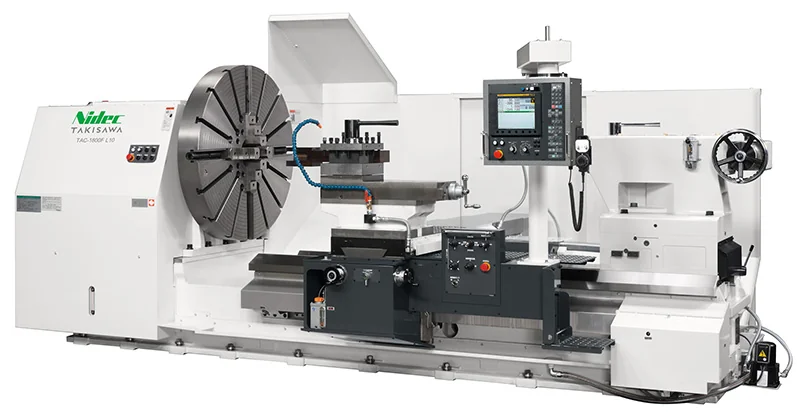

TAC-1800F

TAC-Series

TAC-1800F

Unique Interactive CNC/Face Lathe

Key specifications
Swing Over Bed
mm / 1300
Swing Over Gap
m / 1830
Swing Over Cross Slide
mm / 880
Turning Length (Distance Between Centers)
mm / L10(1300), L20(2300)
Spindle Speed Range
min -1 / 3～250
Thread Cutting/ Number of Registered Threads
Type / Already Registered 32 Types + Any 8 Types Registrable
Range of Metric Thread (Pitch)
mm / 0.001～500(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 5000.
Range of Inch Threads (Pitch)
TPI / 999.99999～0.05080(any) Condition: Thread lead (feed amount) mm x Spindle speed (min-1) is 5000.
Spindle Motor
KW / 18.5/15 [OP.22/18.5]
Features
  • Takisawa's unique "RAKU-RAKU software" Unnecessary of NC Programming Knowledge Easy Input Operation
  • RAKU-RAKU Expert’s excellent operability that will make the operator feel convenient.
  • Standard tool post is a Curvic manual index type square tool post having opposite side distance 270mm to support heavy-duty cutting.
  • Full power cutting by highly rigid headstock and low speed rotation
Request price & details →

Enquiry

Discuss your turning or milling application

Tell us the component, material, tolerance and volume, and the Takisawa model of interest.

Call
Email
WhatsApp
Office
1992, J-Block, 3rd Street, Anna Nagar, Chennai 600 040, Tamil Nadu, India.

Specifications and machine names summarised from the Takisawa official English product catalogue (takisawa.co.jp). Final configuration confirmed after application review.

Send your requirement

We will reply by email or phone.
